Front Panel Gaskets


Itron UK are now producing laser cut Neoprene gaskets for customers who mount a touch display module inside and enclosure.
The gaskets are 1.5mm thick and can be created up t0 350mm x 350mm.

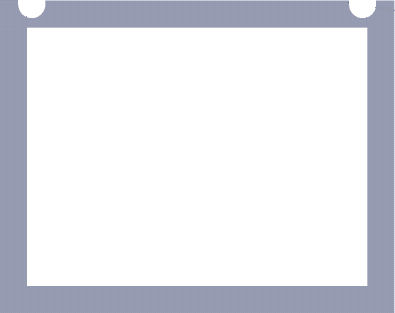

FPG74X57A6 - 3.5" Gasket - Spec

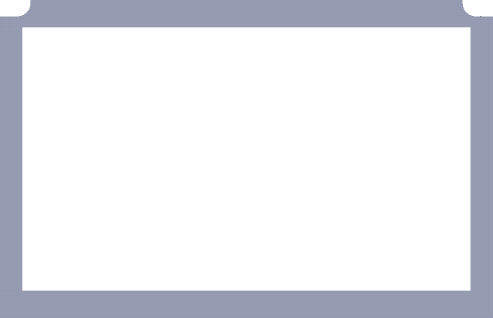

FPG99X58A6 - 4.3" Gasket - Spec

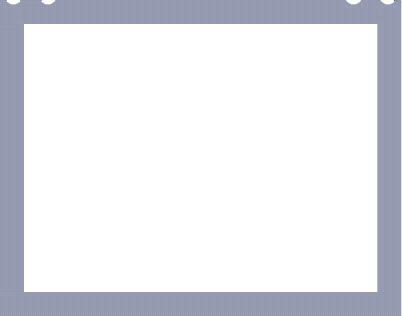

FPG118X89A8 - 5.7" Gasket - Spec

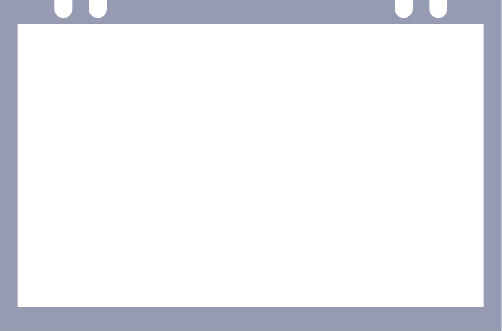

FPG155X94A8 - 7.0" Gasket - Spec


FPG-Custom - Custom Gasket - Email us your drawing with dimensions and quantity
