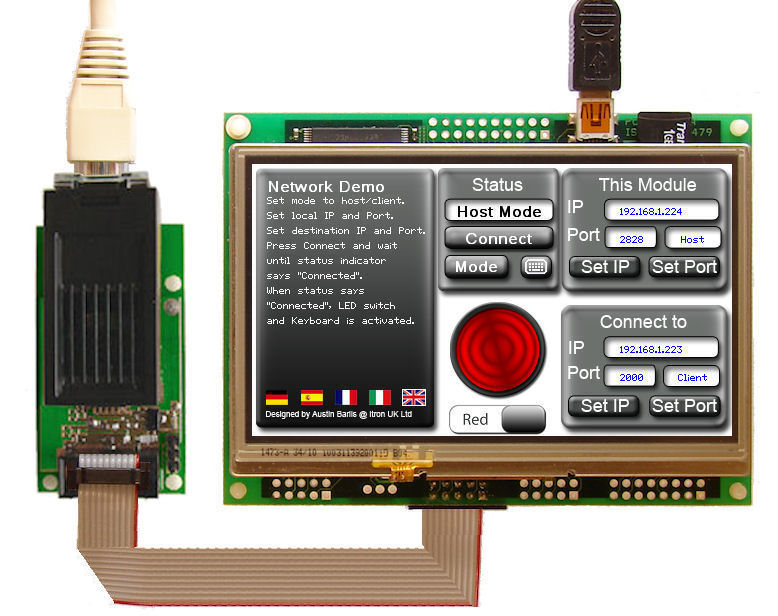

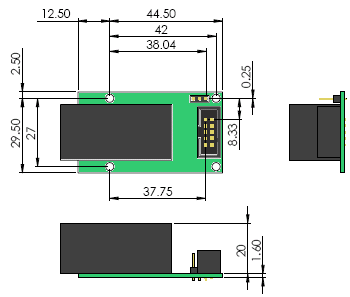

Ethernet MCBK38B - Ethernet adaptor for use with CN3 The device communicates via Async1 on CN3 Mechanical Drawing Ethernet Module Spec   A sample project that uses the MCBK38B can be found in the projects section of our website View Program     View Video    4.3" Download Download Zip File   Spec Details of  TD XTRACT LAN G3 Power Characteristics VCC Supply voltage 3.3V Power Consumption 150mA max at 10 Base T 300mA max at BaudRate up to 230Kbps (default is 115200) No Parity 8 databits 1 stop bit Reset Description Active Positive Therefore Modem is in reset state when we apply 3.3V on Pin12 The minimum duration is 200ms When reset is active modem is switched off and stated in low current mode *Optional Temperatures / Humidity Operating Temp -40 to 105 C   Humidity 8% to 95%   Non condensing continuous operation Storage    Temp -65 to 155 C   Humidity 5% to 95%   Non condensing, indefinite period
