How to scroll text message

Add Magnifier png to library
Add background image to library
Add font file to library

Create a style for image
Create a style for page
Create a release key style
Create a press key style
Create a font style with text box

Create variable for keystatus
Create variable for modified TouchX
Create variable for modified TouchY
Setup touch settings for a better smoother response

Define a page named "MainPage" with style "pageStyle"
place a down key to set variable
Place a release key to reset variable

Create text entity in top left

Create image entity


Create a loop running forever

Check status of variable and run keyfnc acccordingly

Create Keyfnc function
Calculate the offset for viewing glass
Position the image at TX, TY coordinates

After loading show the page named "pageName"

LIB(img1,"SDHC/mag2.png");
LIB(backg,"SDHC/Back.png");
LIB(asc_16,"SDHC/asc_16b.fnt");

STYLE(sTimg, Image) {curRel = CC;}
STYLE(pagestyle, Page) {back = black; image=backg;}
STYLE(sTkeyU, key) {type=touch; action=U; delay=0; currel=TL;}
STYLE(sTkeyD, key) {type=touch; action=D; delay=0; currel=TL;}
STYLE(textstyle,text){font=asc_16; col=white; currel=TL; maxLen=52;type=a; back=\\80000000; padding=3; bcol=white; width=1;}

VAR(keyD,0,U8);
VAR(TX,0,U16);
VAR(TY,0,U16);

SETUP(system ){touchsamples = 3; touchdebounce = 5; touchaccuracy = 50;}
PAGE(MainPage, pagestyle)
{
posn(0,0);
KEY(keyD1,[LOAD(keyD,1);],480,272,sTkeyD);
KEY(keyU1,[LOAD(keyD,0);],480,272,sTkeyU);
POSN(1,0);

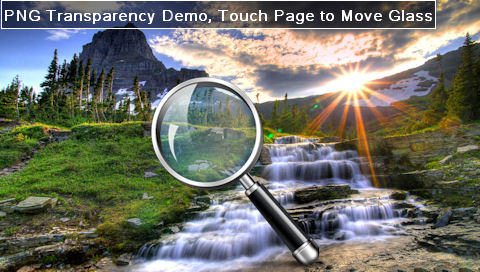

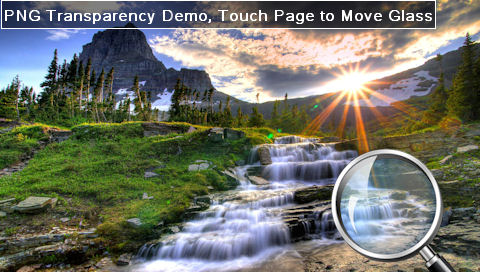

TEXT(text1,"PNG Transparency Demo, Touch Page to Move Glass",textstyle);
POSN(396,124); IMG(imgA1,img1,sTimg);

LOOP(keymove,forever)
{
IF(keyD<>0?keyfnc);
}
}

FUNC(keyfnc)
{
CALC(TX,TOUCHX,42,"+");
CALC(TY,TOUCHY,42,"+");
POSN(TX,TY,imgA1);;
}

SHOW(MainPage);;
