Wide Temp Display Modules
Itron UK’s original electronic visual display expertise can be found within this wide temperature , industrial range of products featuring Vacuum Fluorescent Display technology or VFD’s . IUK’s Wide Temperatue Display Modules based industrial displays have been at the forefront of European industry for the last 40 years and they still find new opportunities in applications that cannot be solved any other way as reliably and cost effectively.
- Wide -40 to +85 Degrees Operating Temperature.
- High Bright visibility and wide viewing angle in all directions.
- Character and Graphic Format options.
- Design Longevity, supported for over 20 years in some cases.
- Modmaster Development Software available.
- Customisable displays and modules.
- Selectable 4/8 bit M68/i80 Interfaces
- Brightness Control Command
- ASIC Controller with only 2us busy time.
- Single 5V DC Supply
- ASCII + Extended + User Fonts
- CMOS Sync serial I/F available
- Graphics Upgrade for 5x7 LCD or VFD
- SPI/Async Serial as Slave or Host
- Graphic Upload and Draw Commands
- Unique Pass-Through Serial Port Host
- Selectable 4/8 bit M68/i80 Interfaces
- Place Cursor on any Pixel.
- 5x5, 5x7, 7x7, 7x15, 10x14 ASCII Fonts
5x7 Character LCD Emulation These popular 5x7 Dot Character LCD emulation modules have the additional feature that pin 3 can be linked to Busy or Hardware Reset. 4 level brightness control is available.
The high speed ASIC used to control these modules has a busy time of just 2us enabling dynamic visual effects using the extended character set and 8 user defined characters.Standard Modules

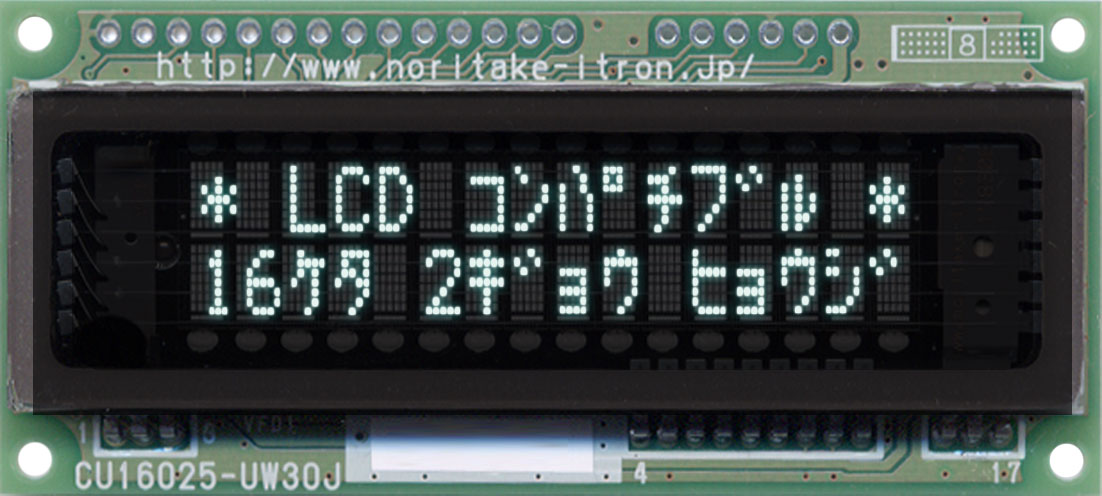

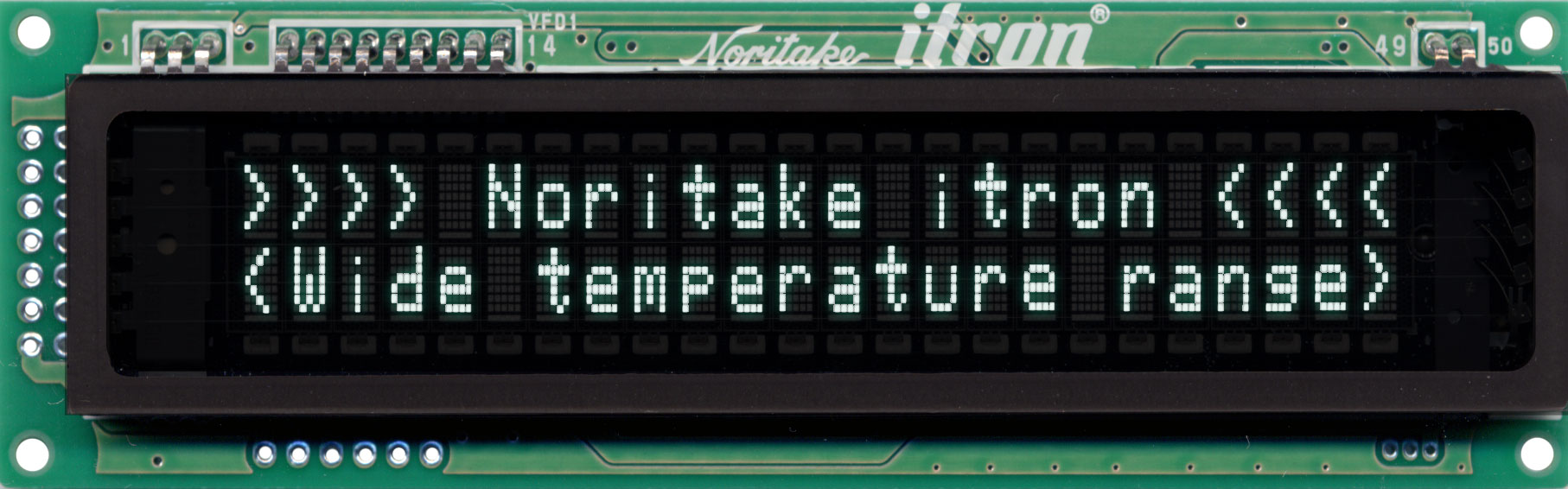

CU16025-UW30J
CU16025-UW6A
CU20045-UW4J

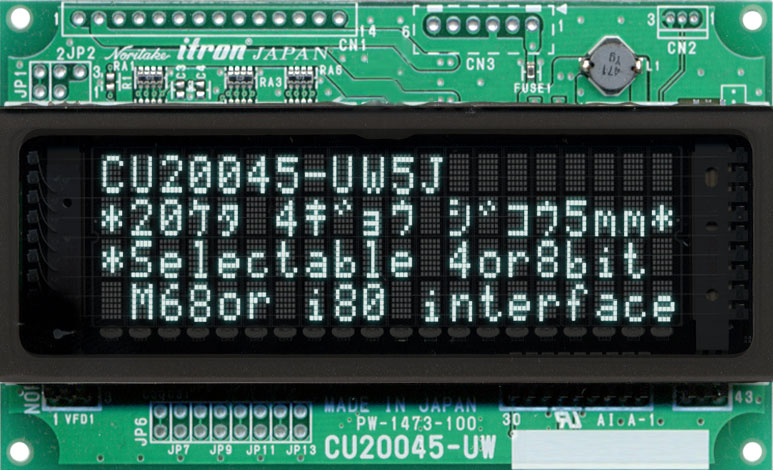

CU20045-UW5A
CU20045-UW7J

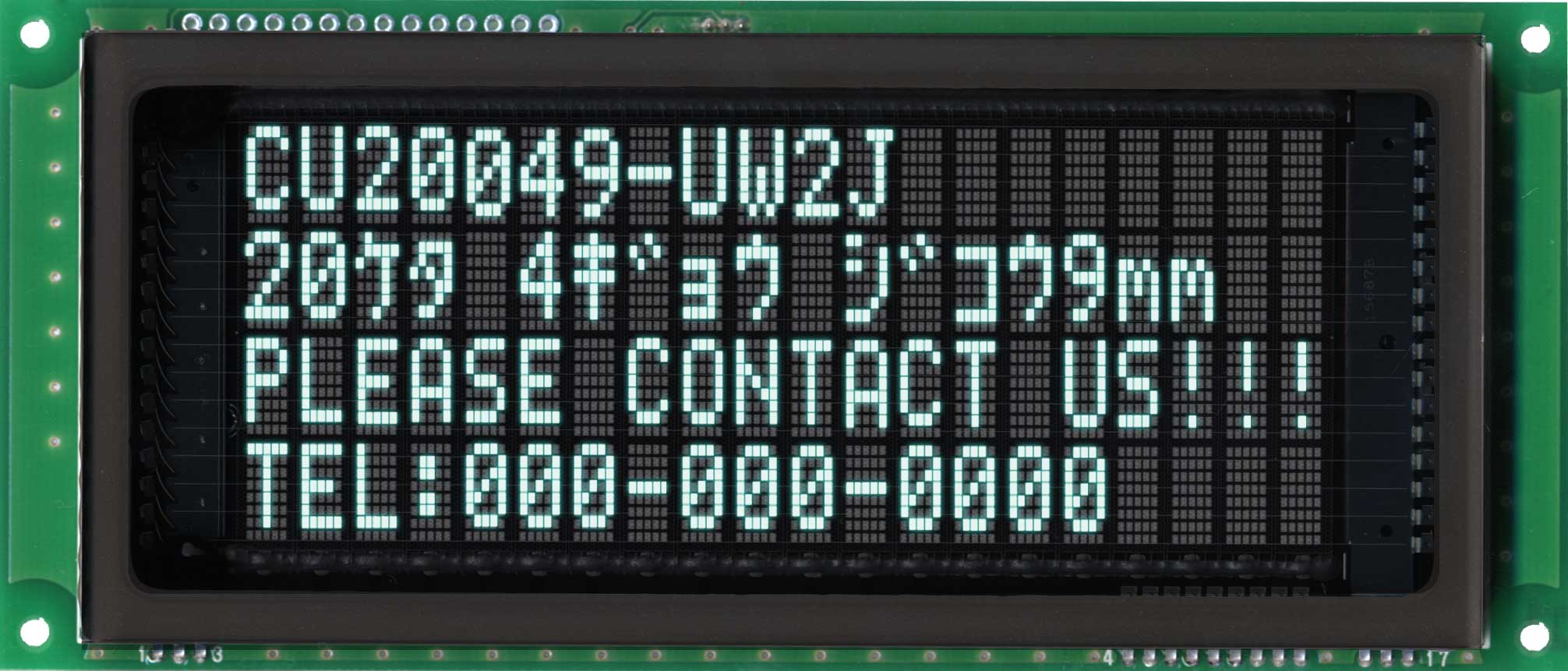

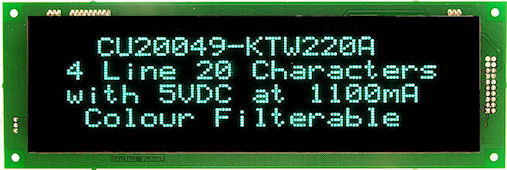

CU20049-UW2A

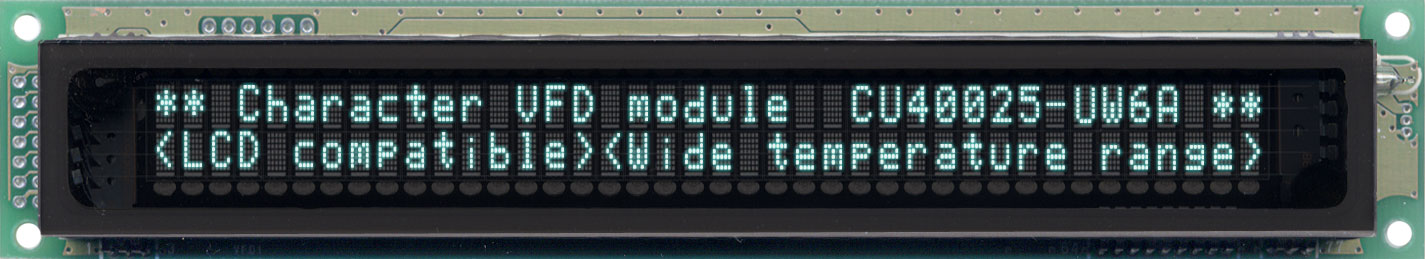

CU40025-UW6A
Brightness Boost Modules
CU16025-UX6J
CU16025-UX6A

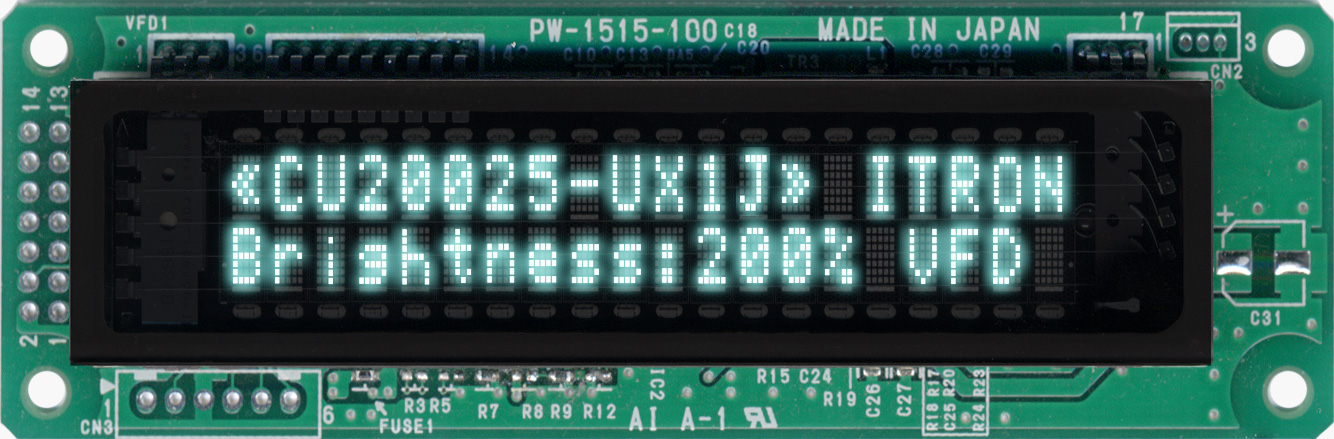

CU20025-UX1J
Compact / High Brightness Modules

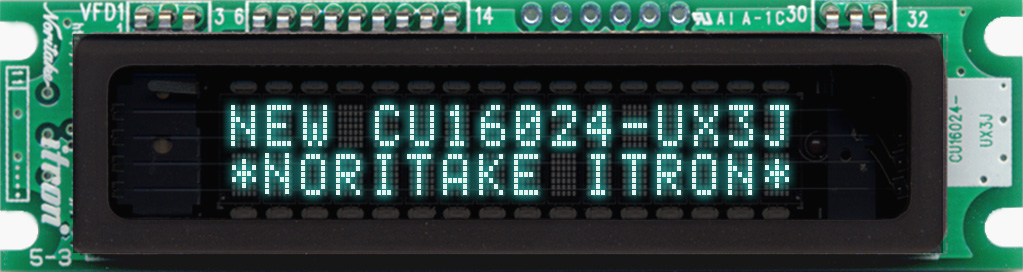

CU16024-UX3J

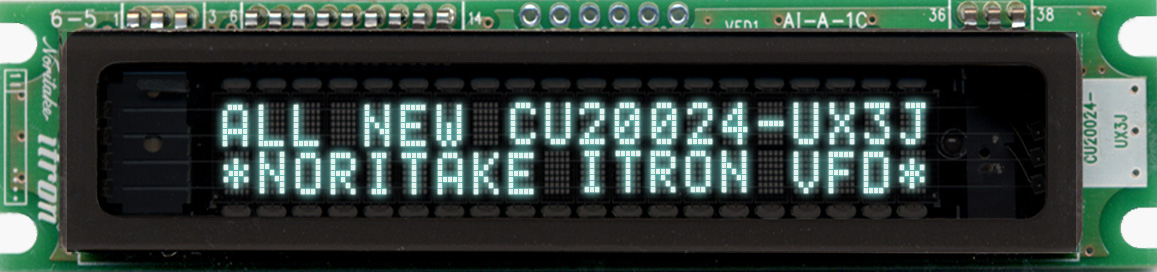

CU20024-UX3J

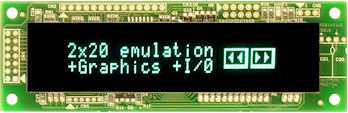

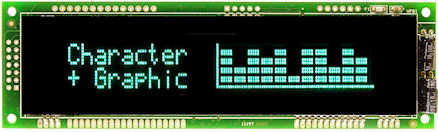

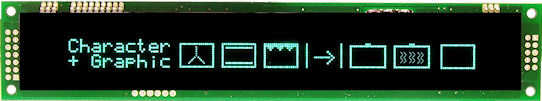

LCD Emulation + Graphics New Double density versions allow you to increase the number of rows in the same size modules. For example: 2x16 > 3x16 > 4x16. A 7x7 font is used to provide enhanced readability The 7806A have ASCII + European fonts and the 7806AC versions have ASCII + Cyrillic fonts
5x7 Character LCD Emulation
Graphic LCD module Emulation

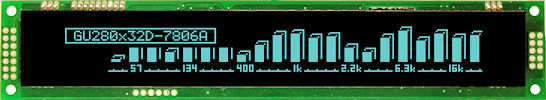

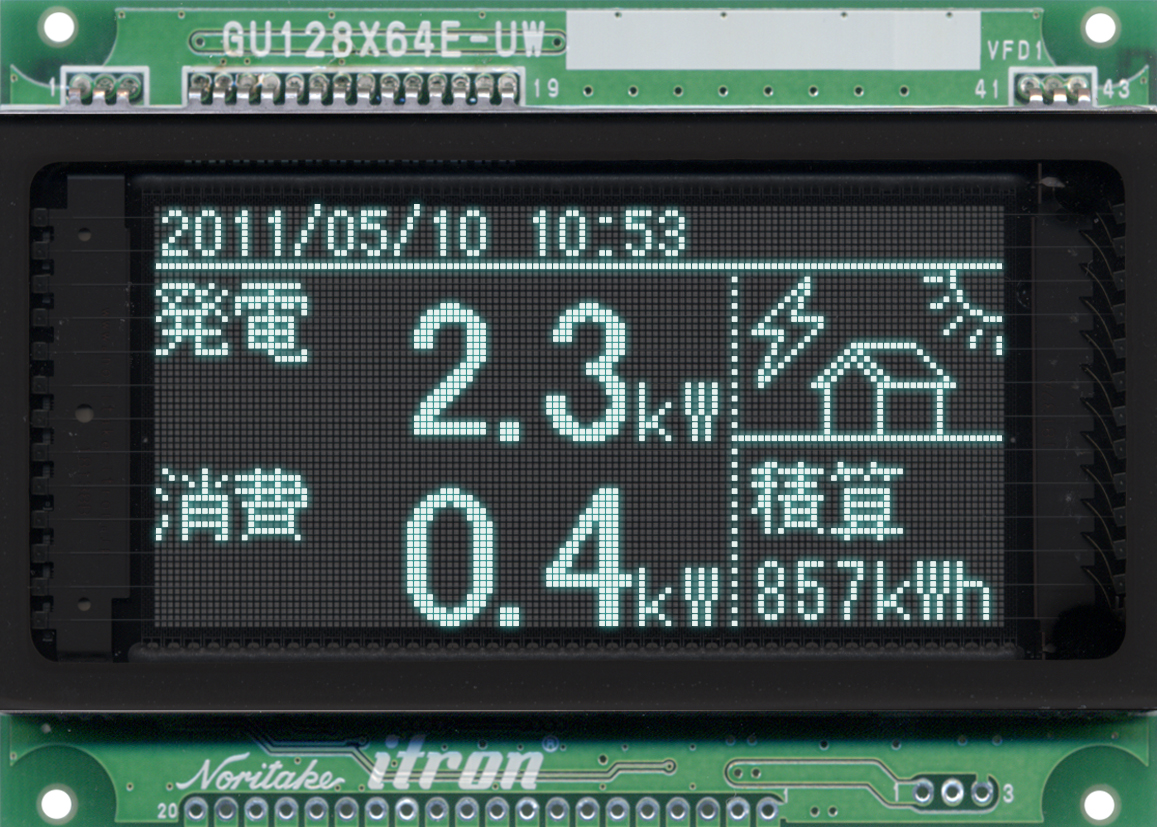

GU128X64E-Uxx
GU128X64E-UWxx

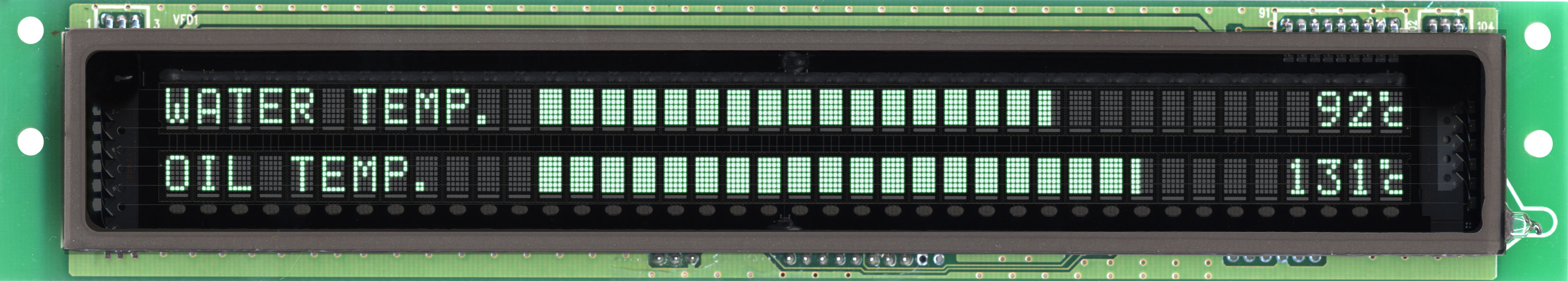

Bold Font Character Module These character modules are easy to control with ASCII commands and characters using parallel or serial interfacing. The Y series modules feature character brightness control allowing highlighting and grayscale characters and symbols. The T series bold font modules have large pixels to provide a distinct image for easy reading at distance.T - Version

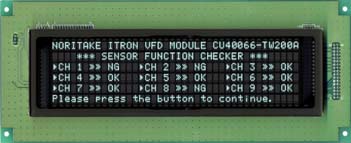

CU16025-TW200B

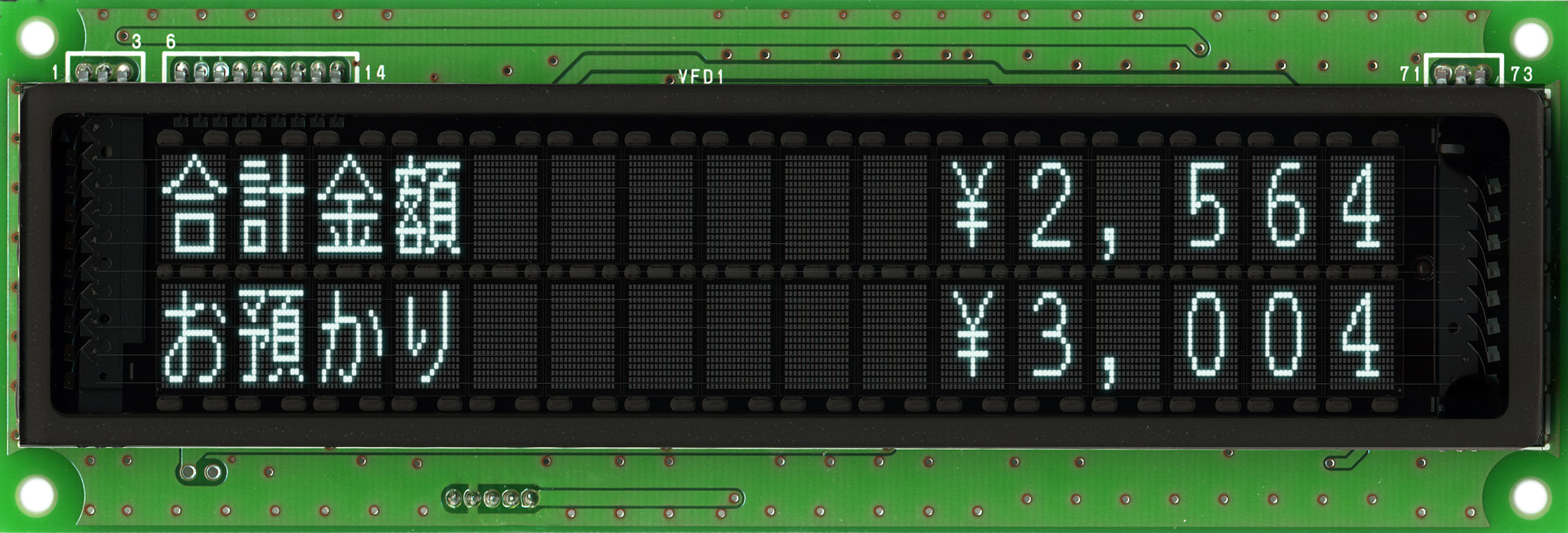

CU16029-TE200K

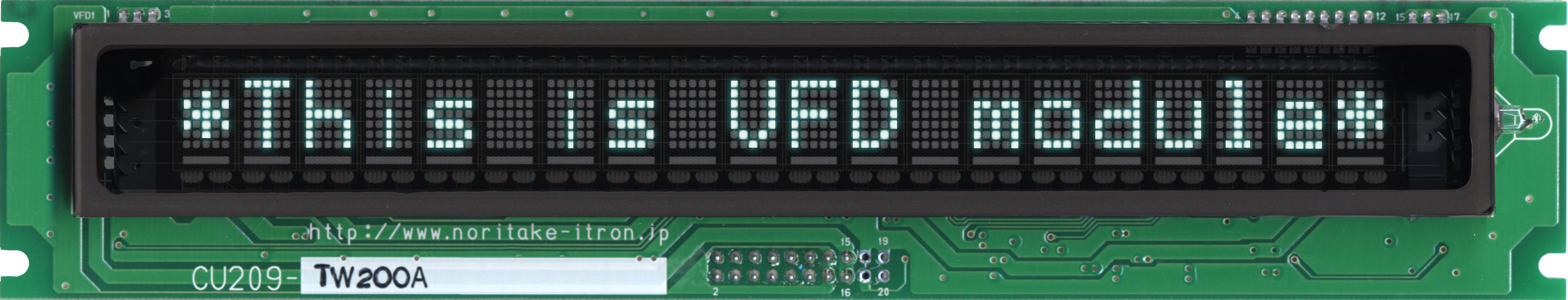

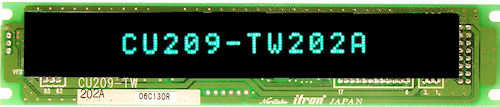

CU209-TW200B

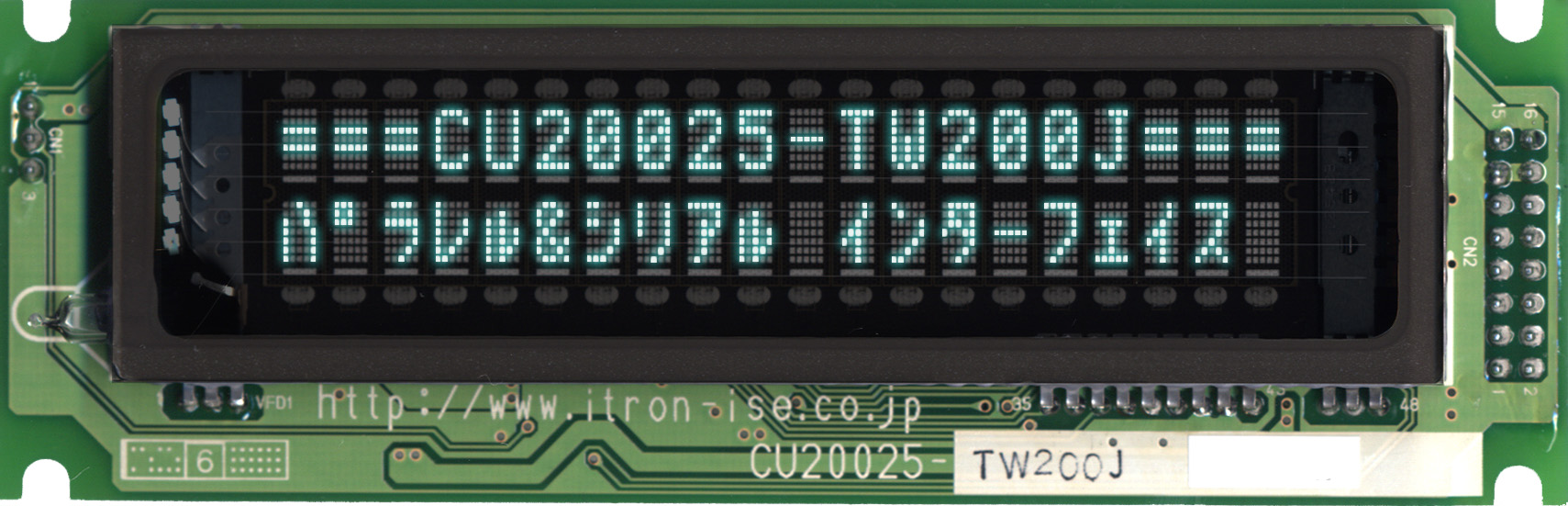

CU20025-TW200B

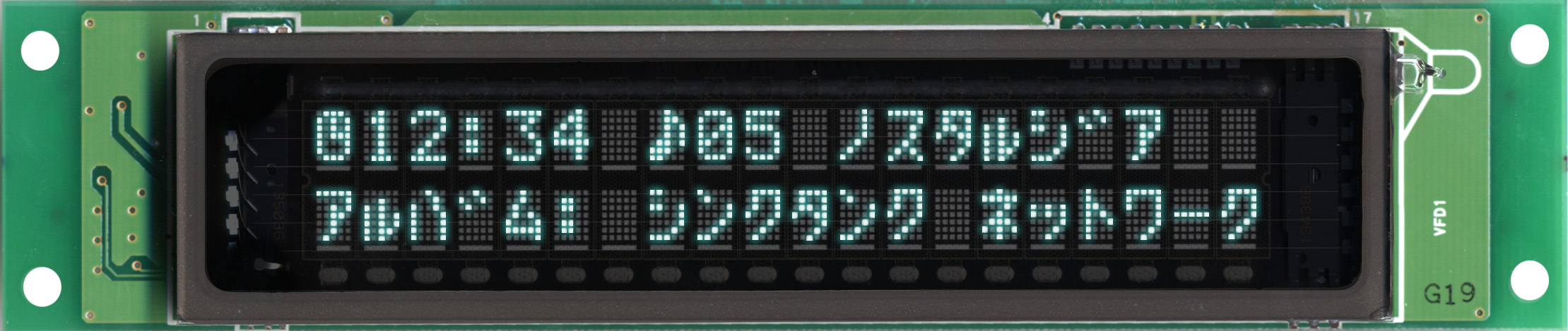

CU20026SCPB-T30B
CU20029-TE200K
CU200211-TE200A

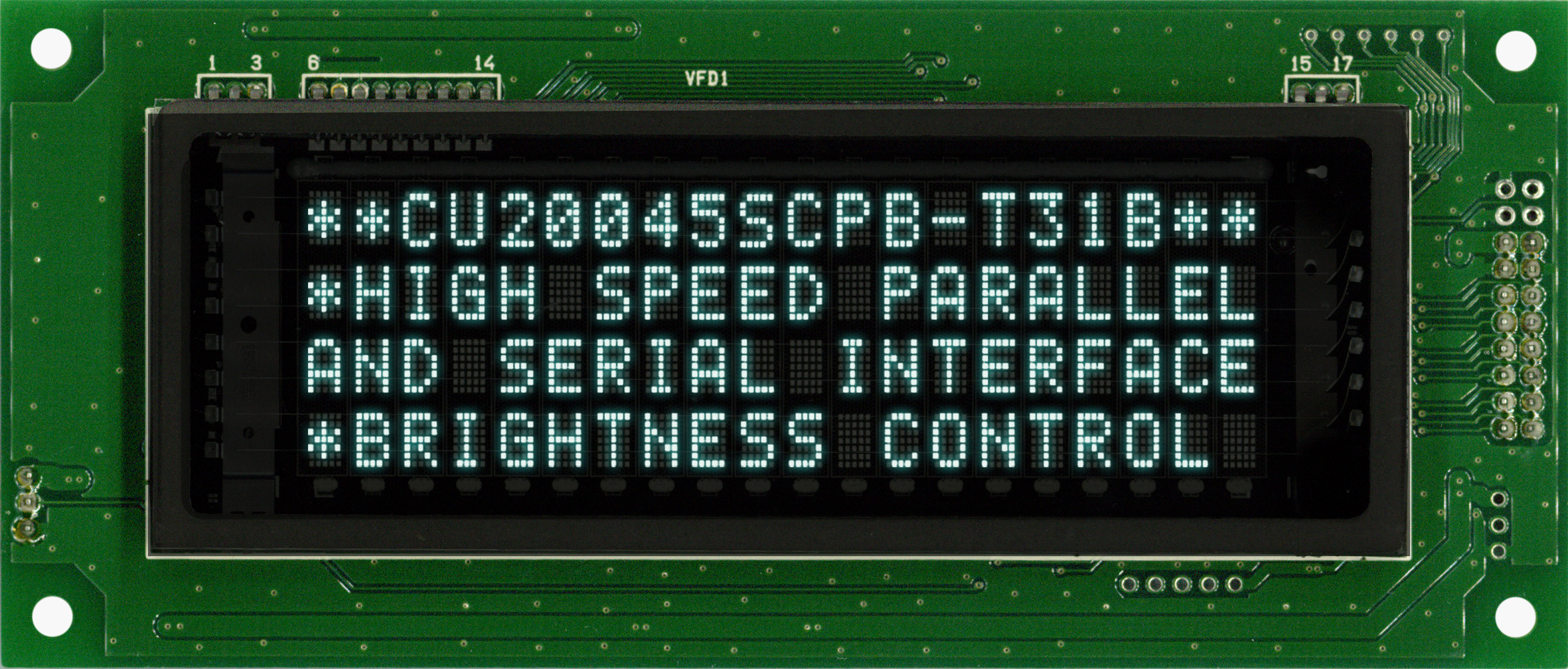

CU20045SCPB-T31B
CU40026-TW200J
CU40026-TW226A
CU40066-TW200A
Y - Version

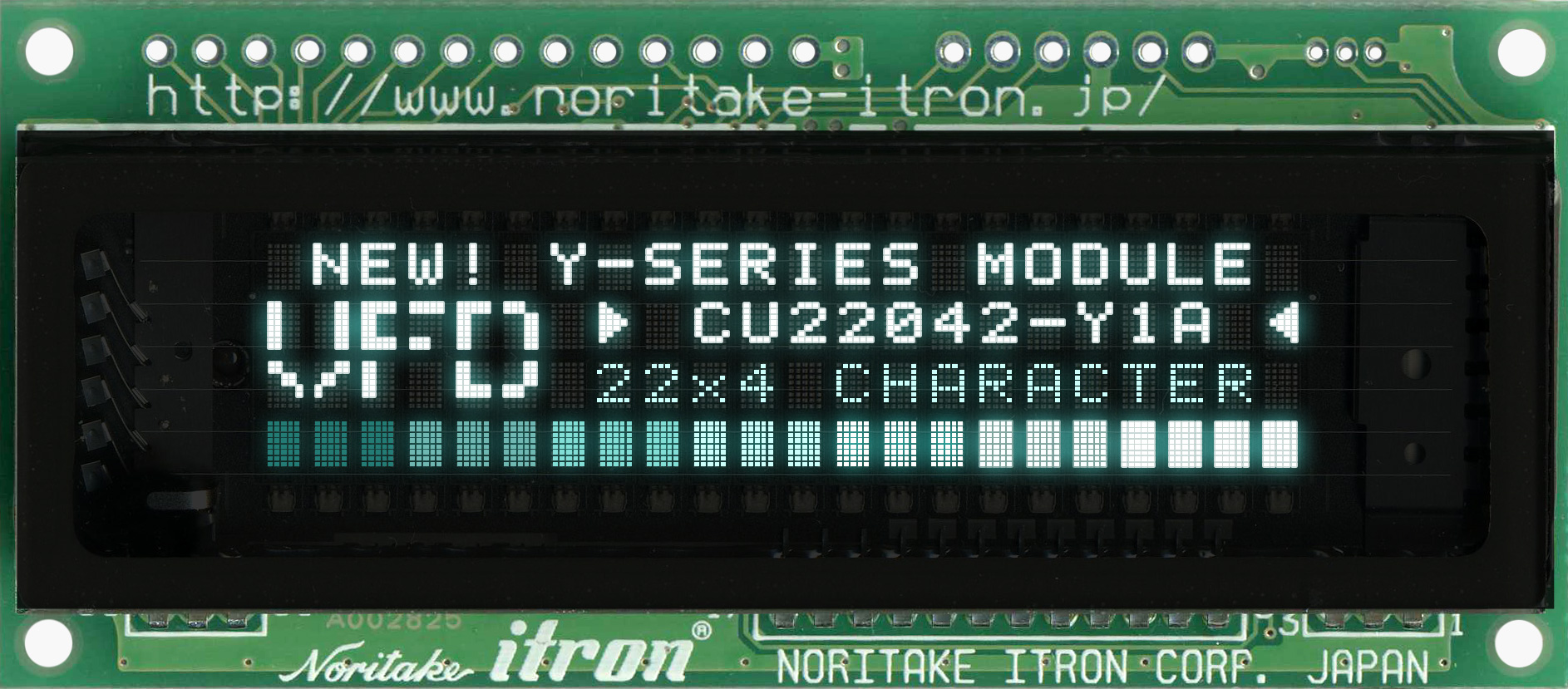

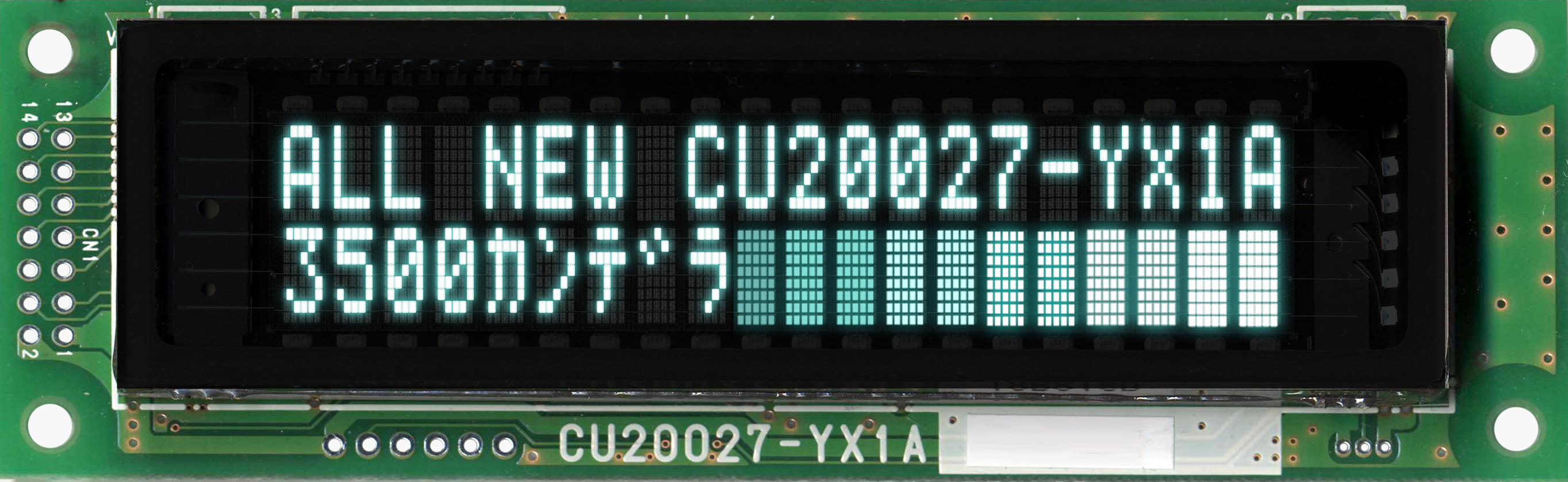

CU20027-YX1xx
CU20027-Y1xx
CU200211-Y1xx
CU22042-Y1xx
CU24043-Y1xx
CU24063-Y1xx

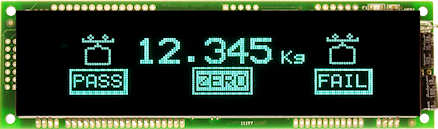

Compact Dot Graphic Compact Dot Graphic Modules have a pixel size of 0.3 to 0.5mm which means they are ideal for visibility at typically 1m. There 4 software series providing commands to suit the display attributes.Compact Graphic / 600 Series
Simple Command / 7000 Series

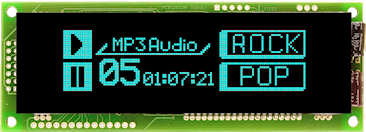

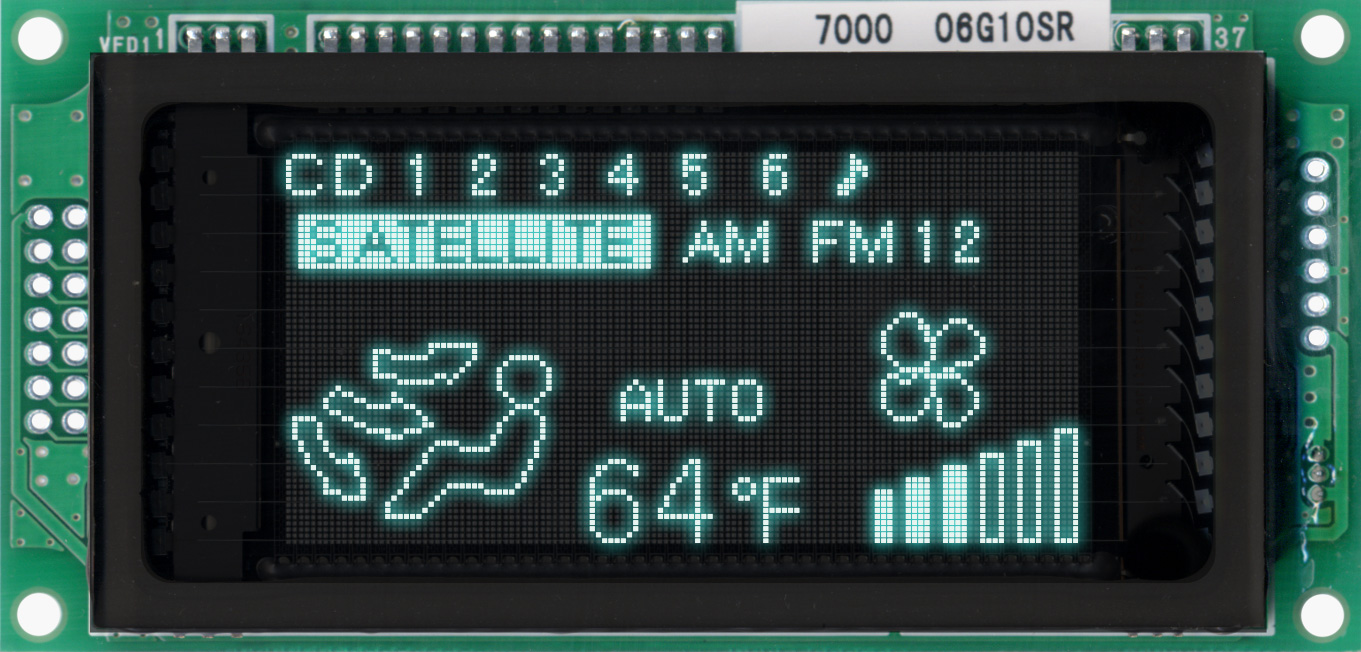

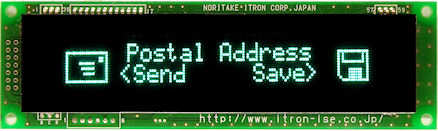

GU128x32D-7x5x

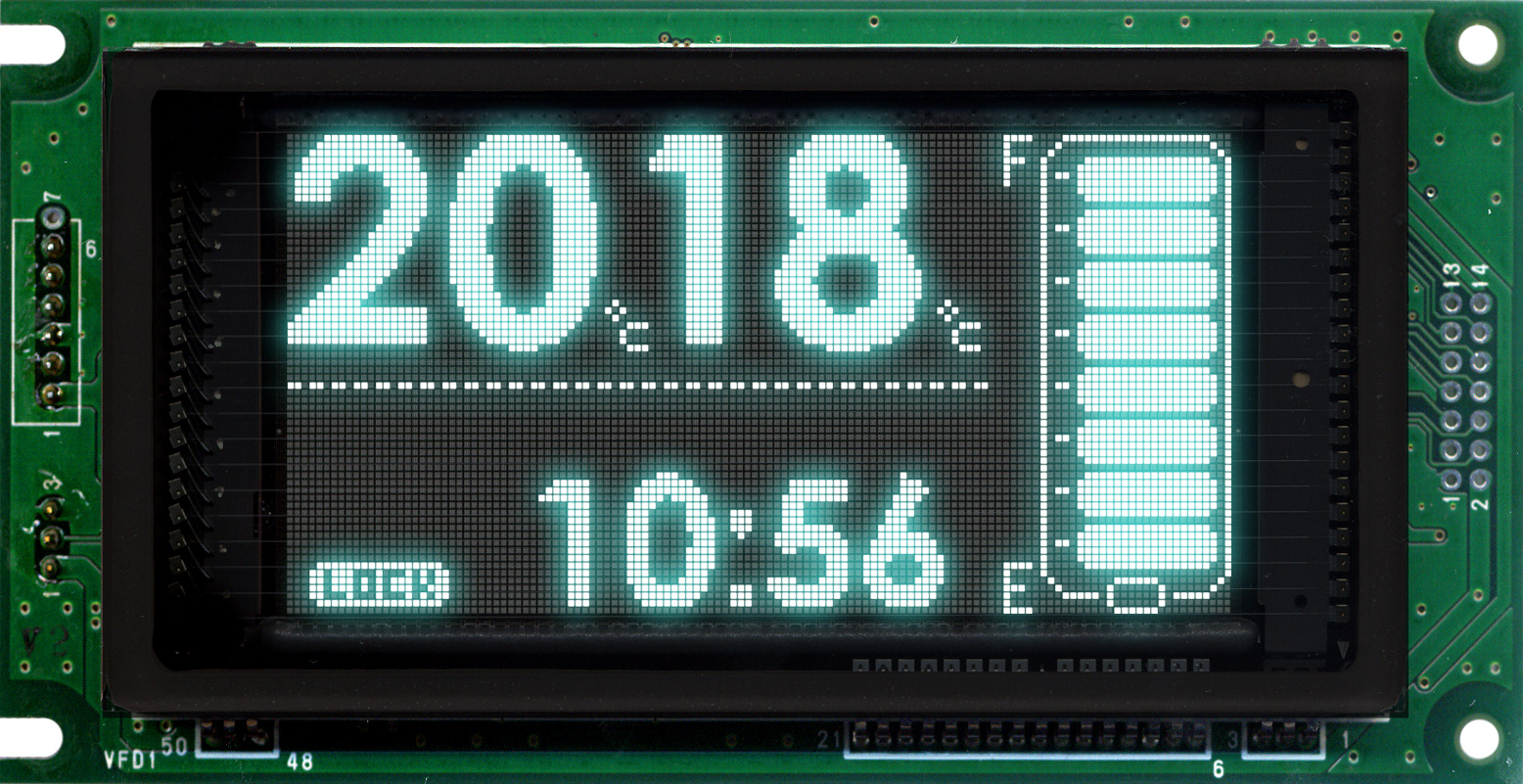

GU128x64F-7xxxBx
GU128x128D-7xxx

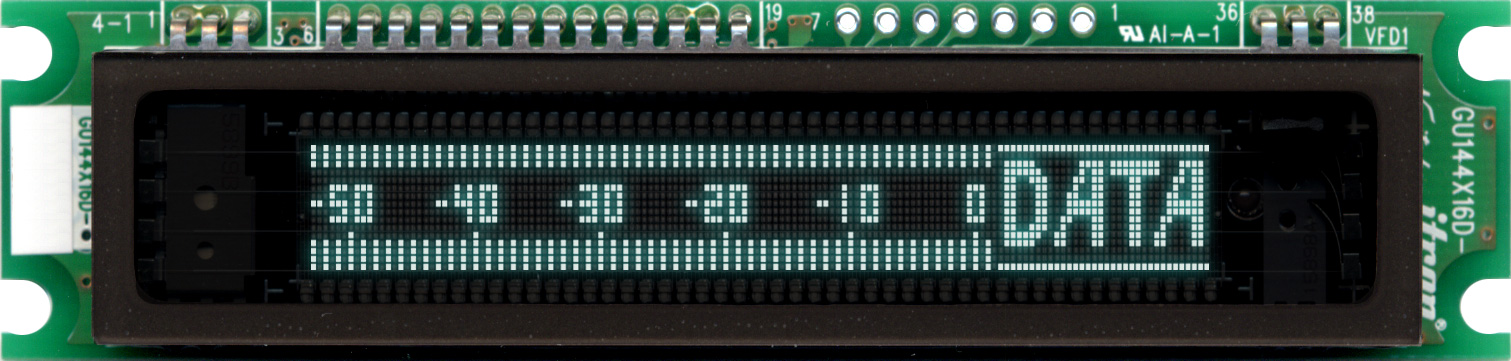

GU144x16D-7xxxB

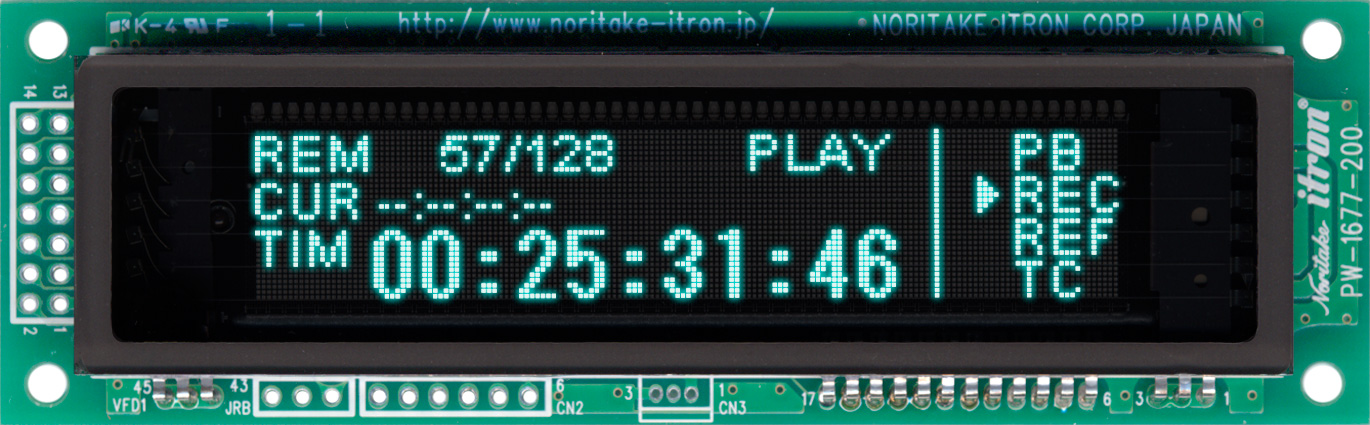

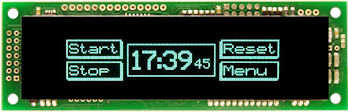

GU160x32D-7xxx

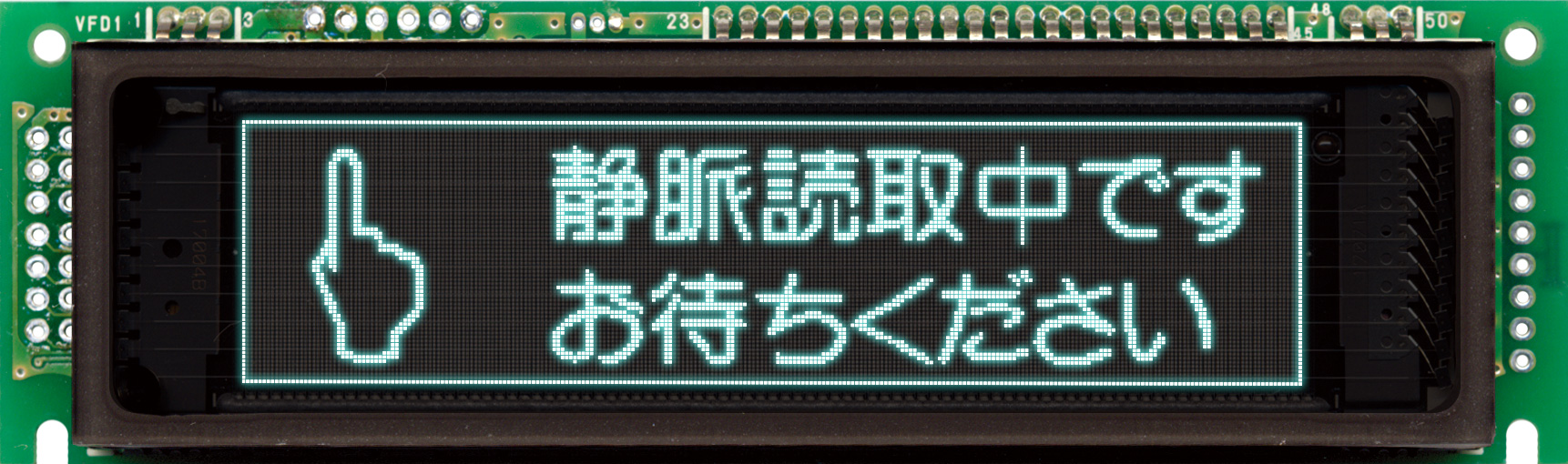

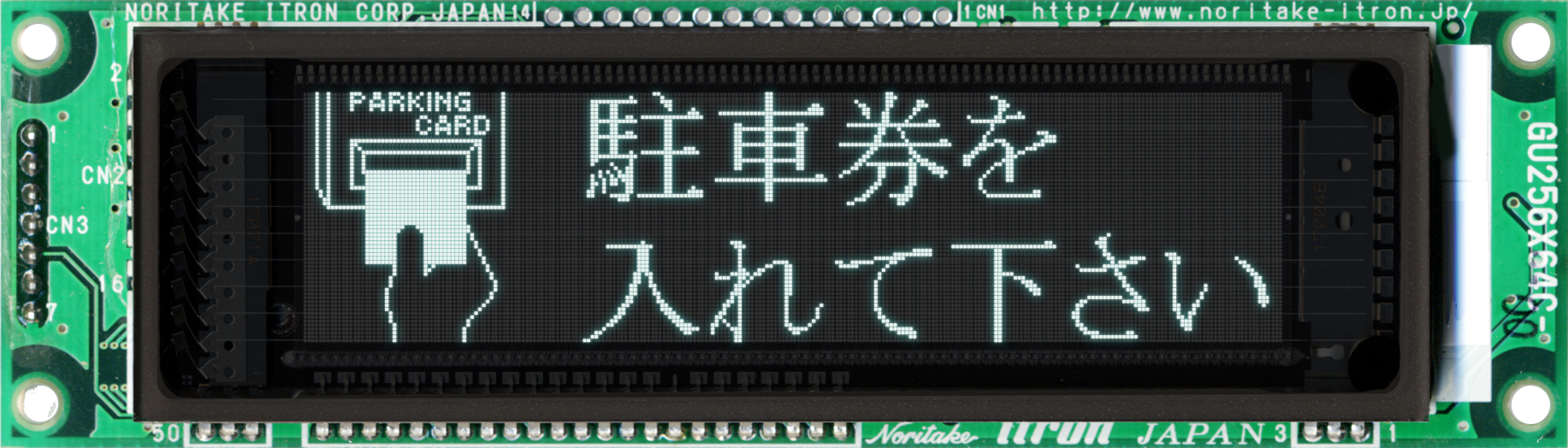

GU256x64C-7xxx
Highend Graphic / 3000 Series

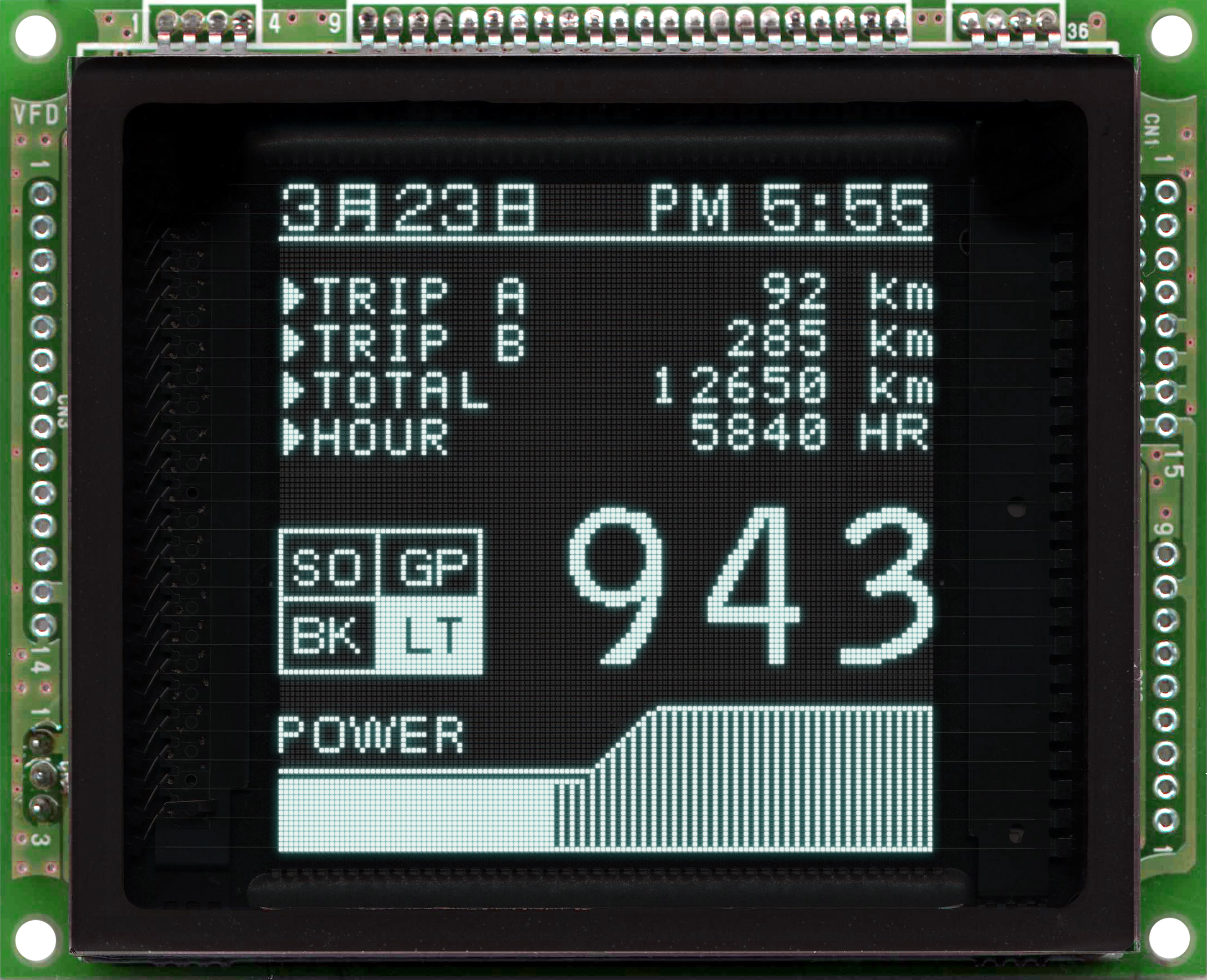

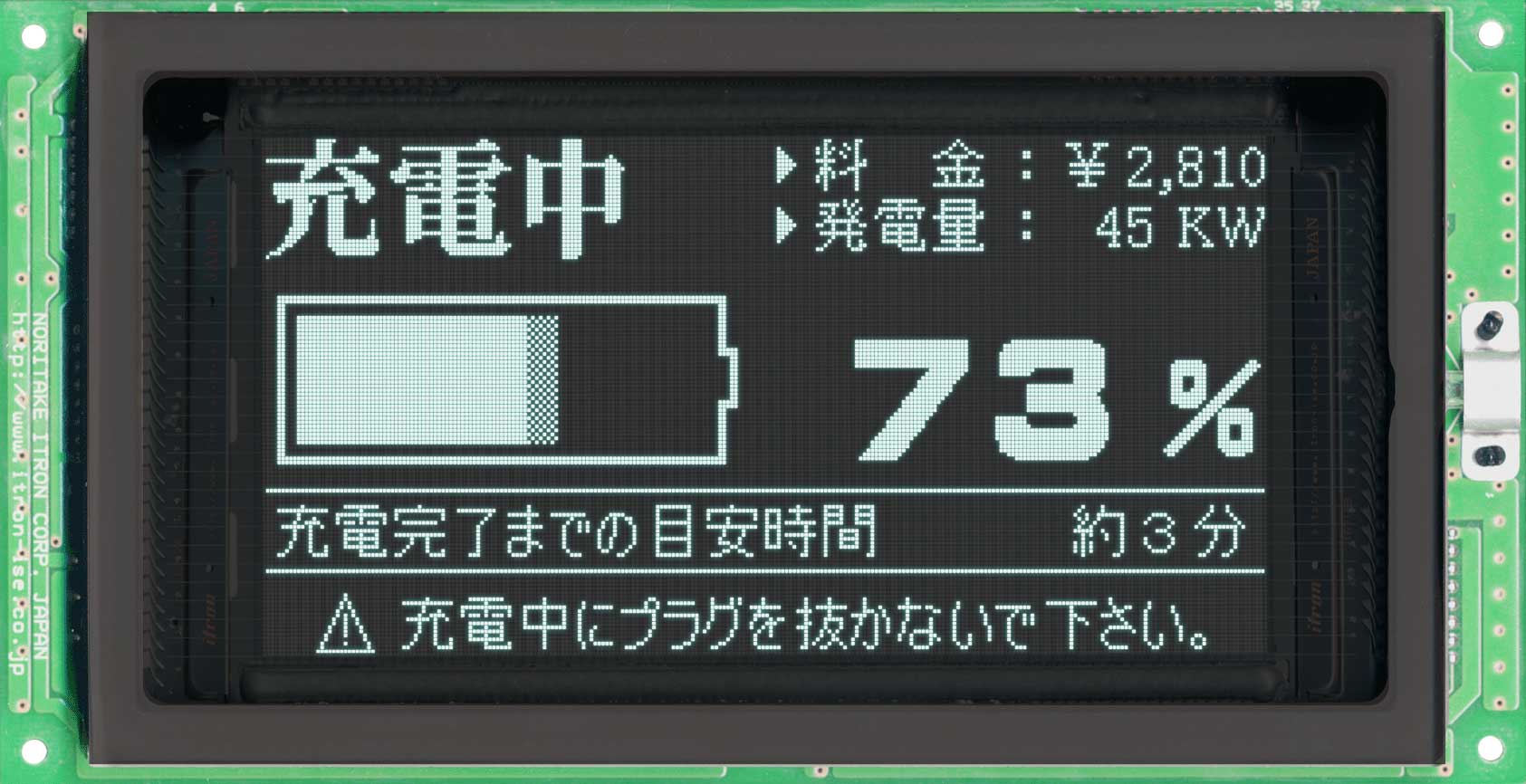

GU128x128D-3xxxB

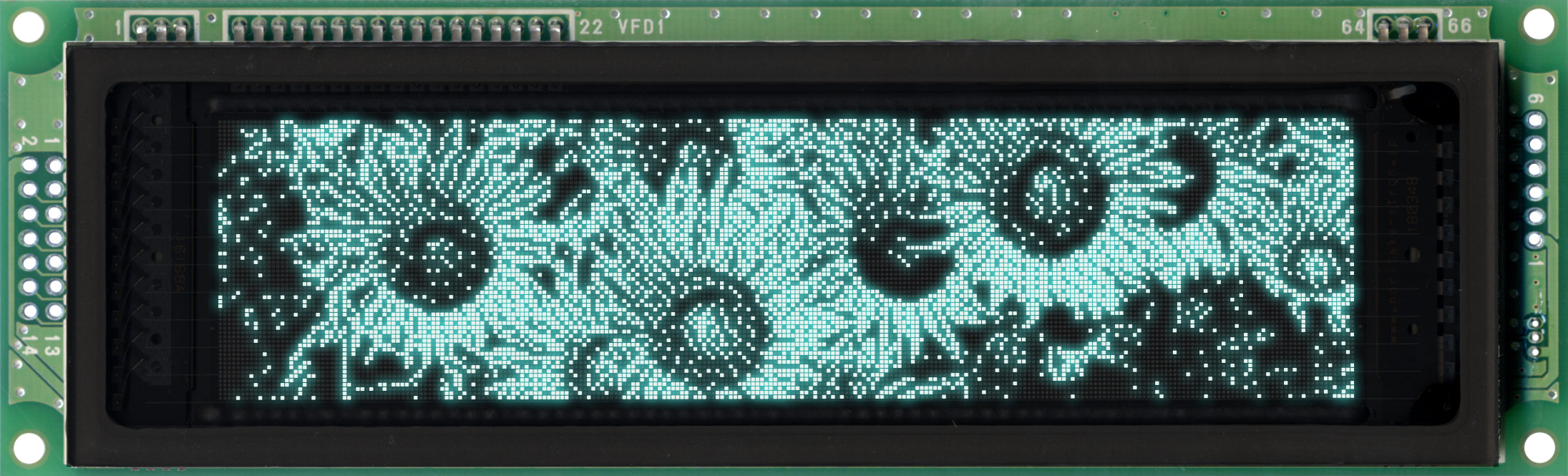

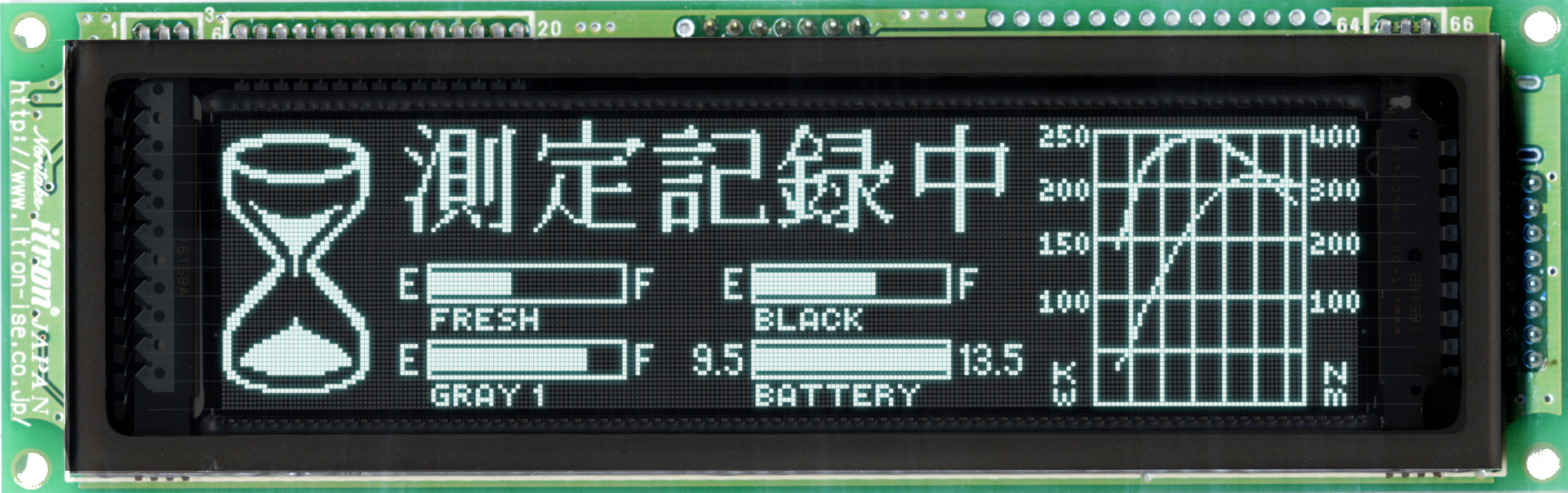

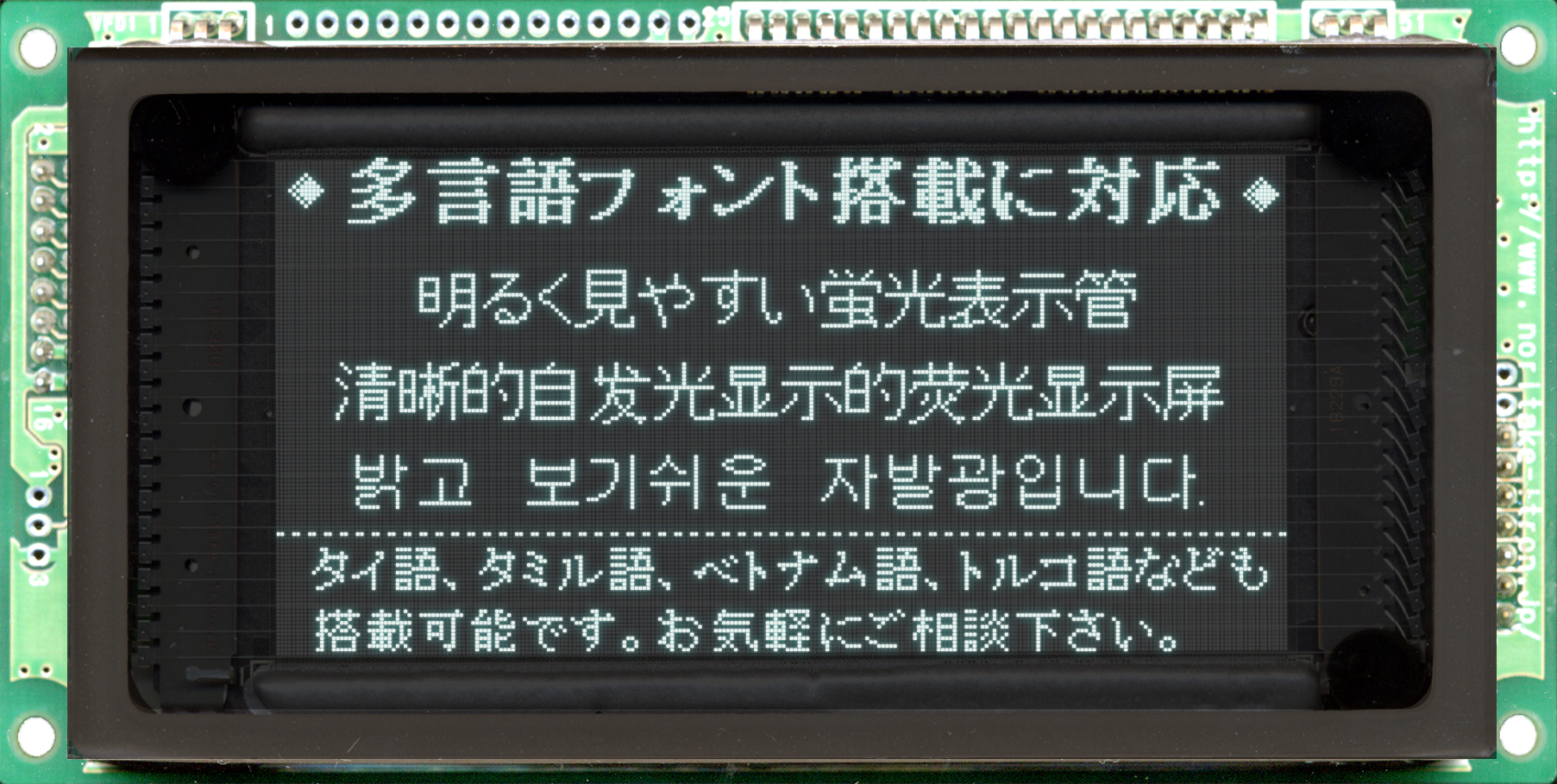

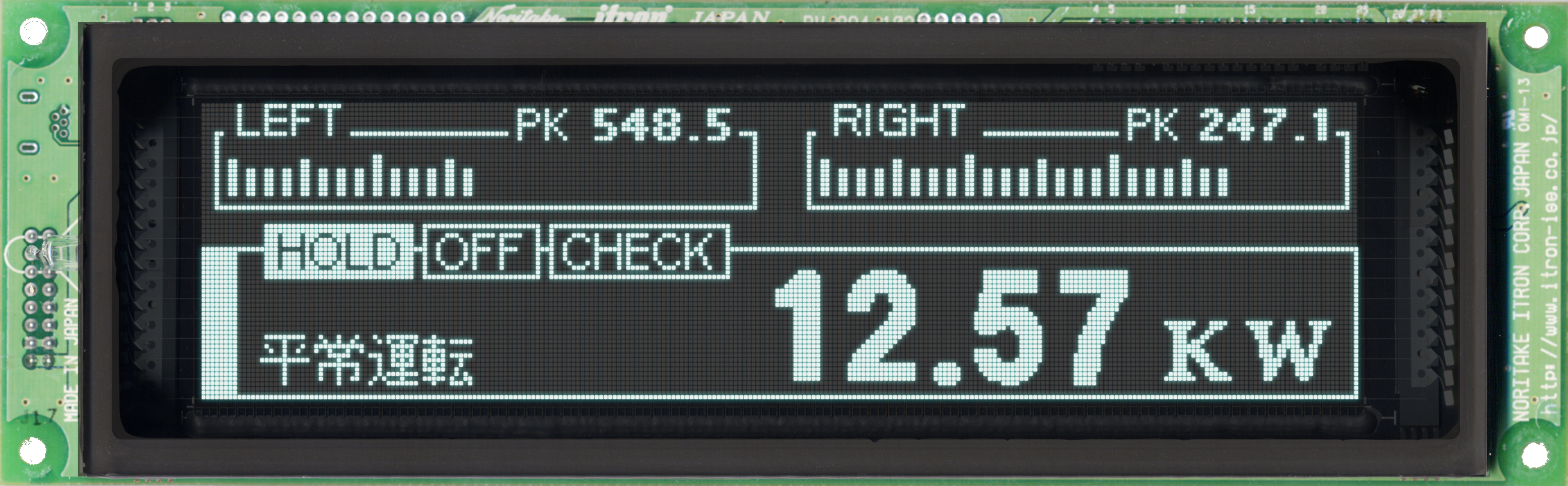

GU256x64D-3x9xB
Capacitive Touch / GU-D Series
GU128x32D-D9xxS

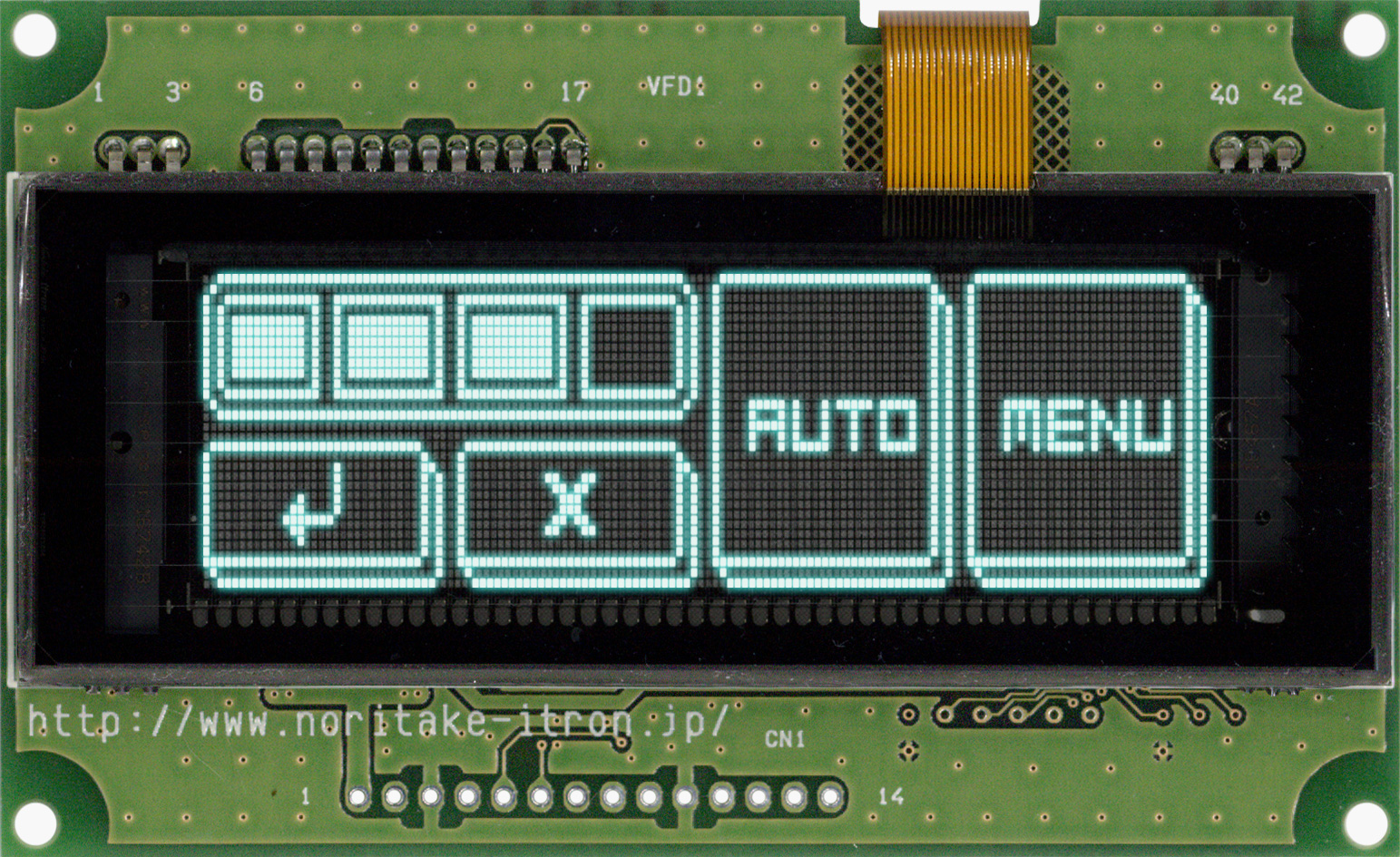

GU140x32F-D9xxS

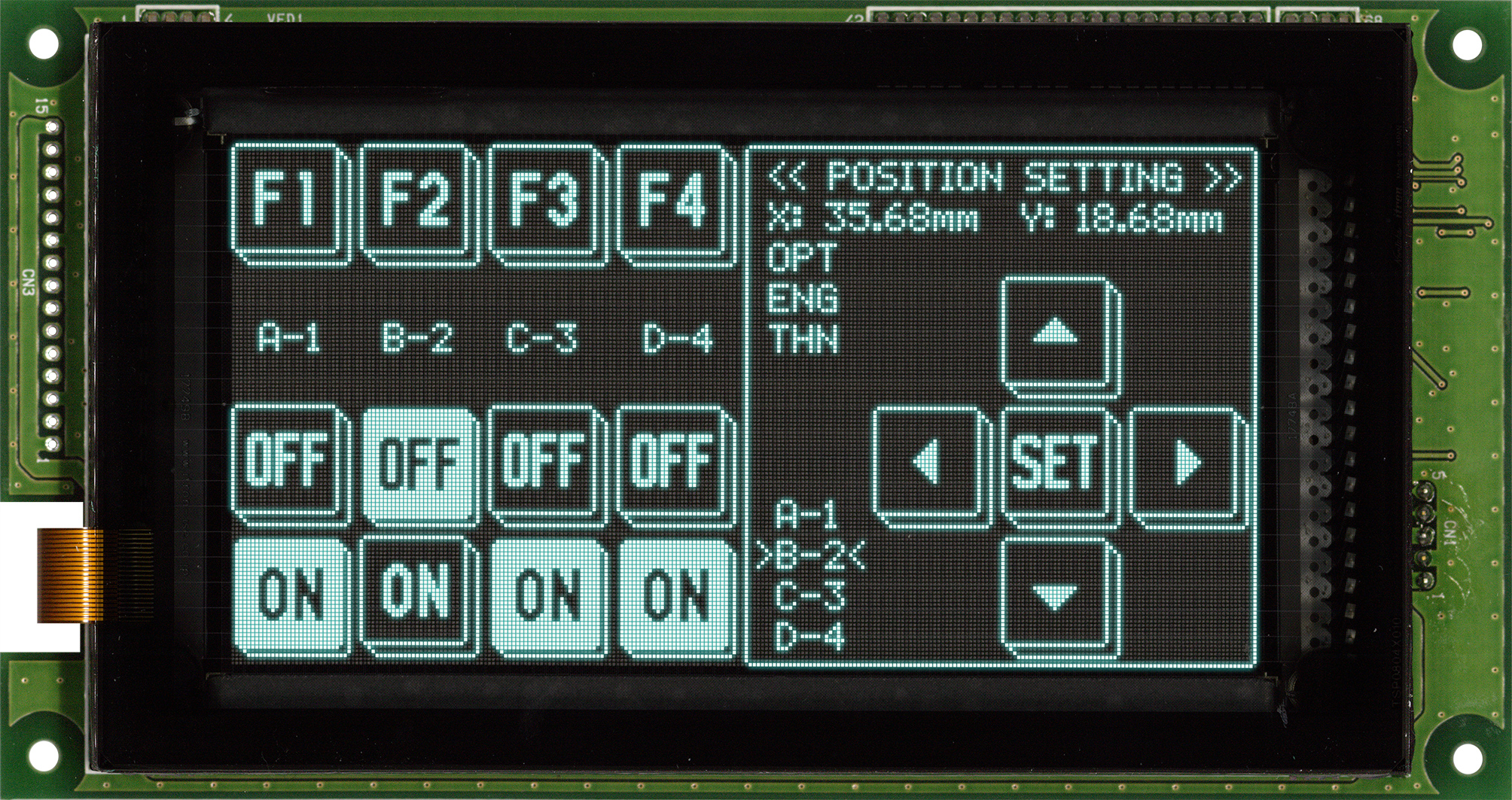

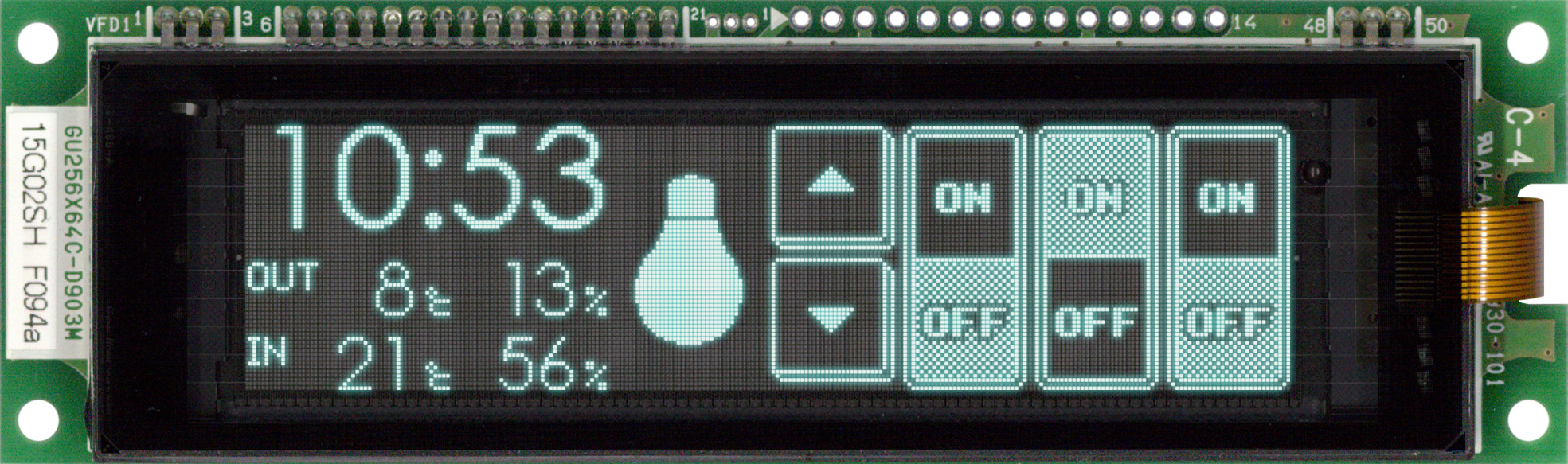

GU256x64C-D9xxM

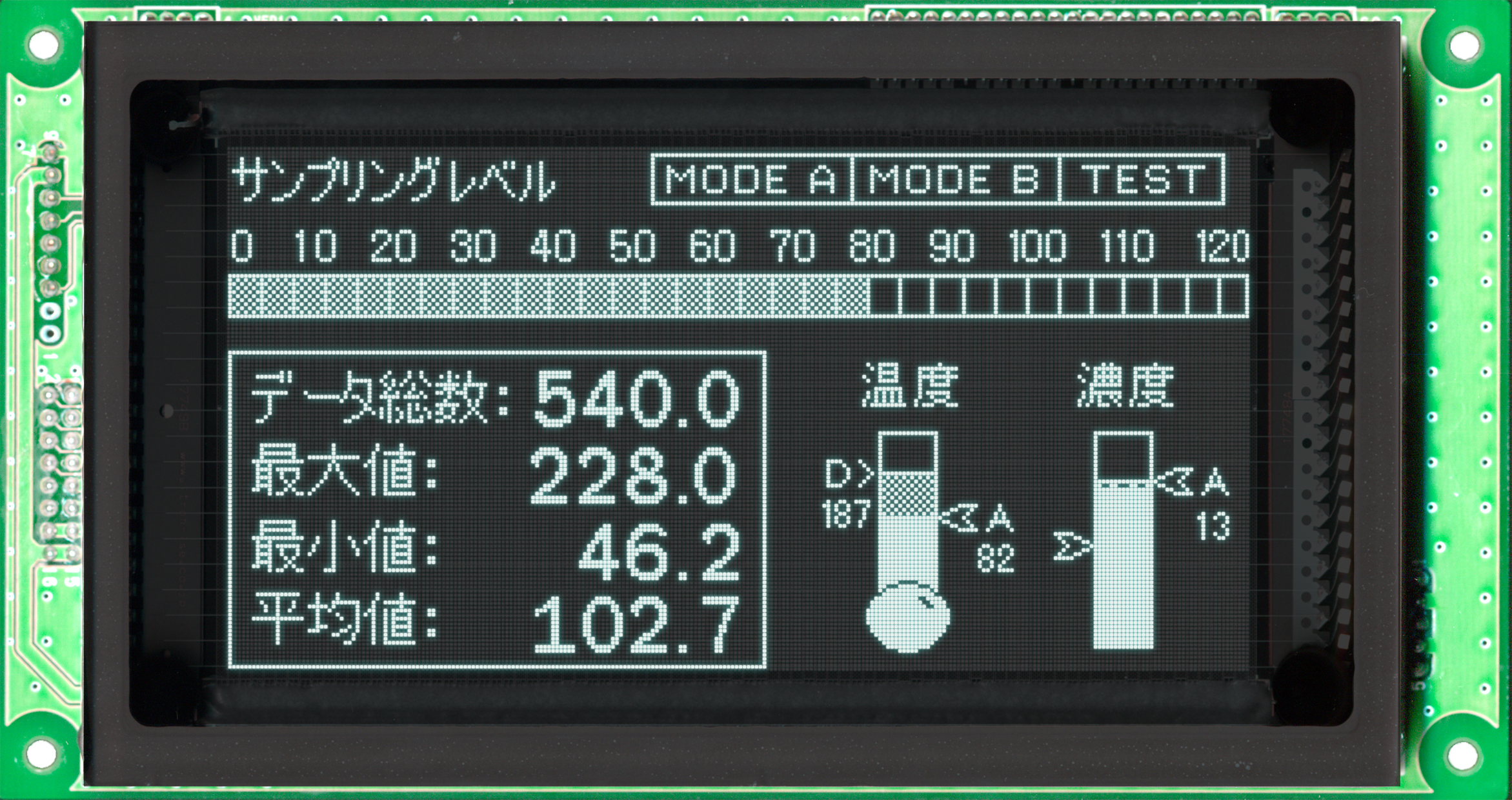

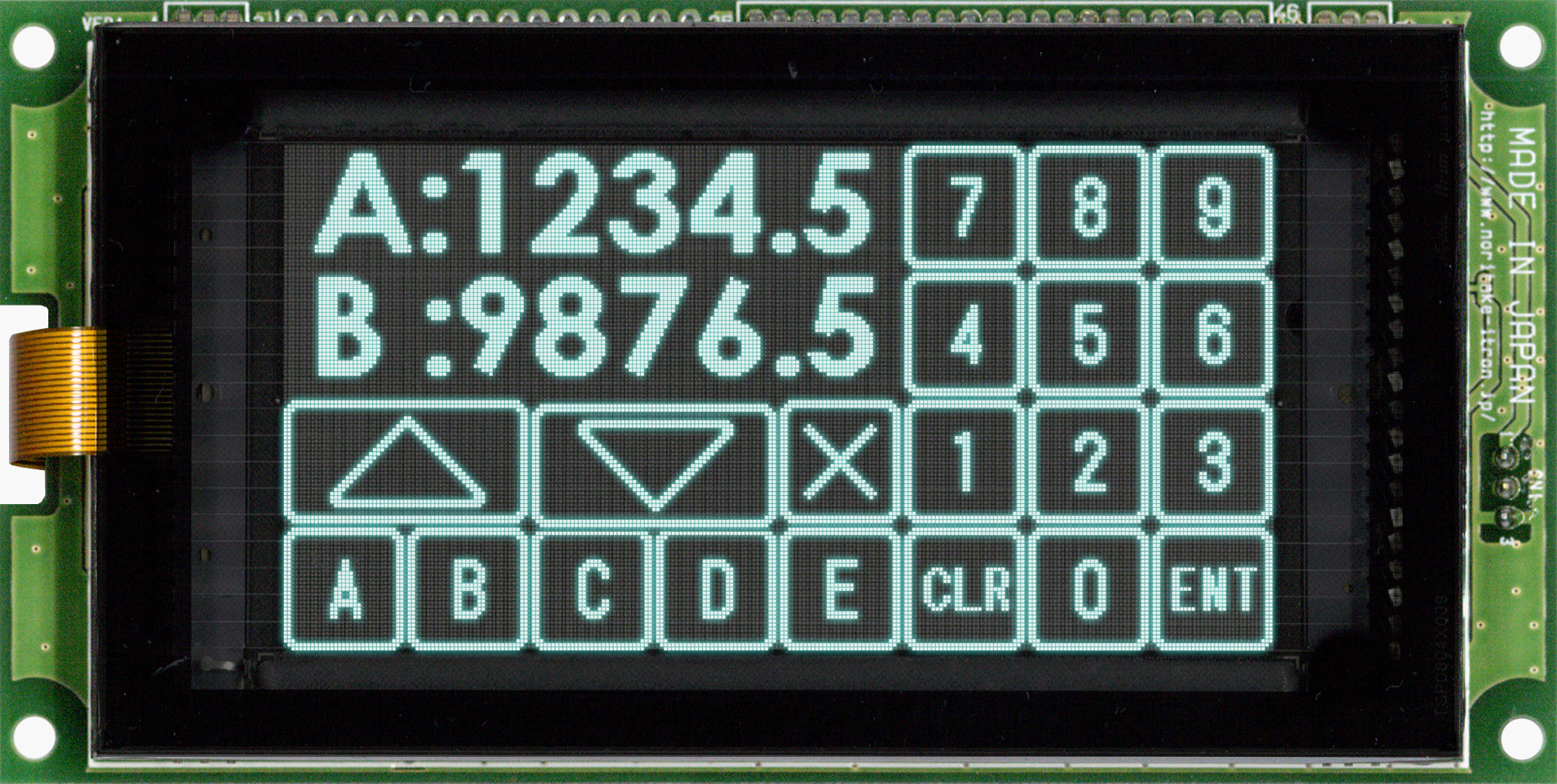

GU256x128C-D9xxM
GU256x128D-D9xxM
Medium Dot Graphics Modules Medium Dot Graphic modules have a pixel size of 0.5 to 0.7mm which means they are visible at a distance of 2-3m. There 4 software series providing commands to suit the attributes of the display.Middle Dot Graphic / 600 Series
Simple Command / 7000 Series
Highend Graphic / 3000 Series
High Speed Graphic / 800 Series
Capacitive Touch / GU-D Series
GU140x32F-D9xxS
Resistive Touch / GU-D Series

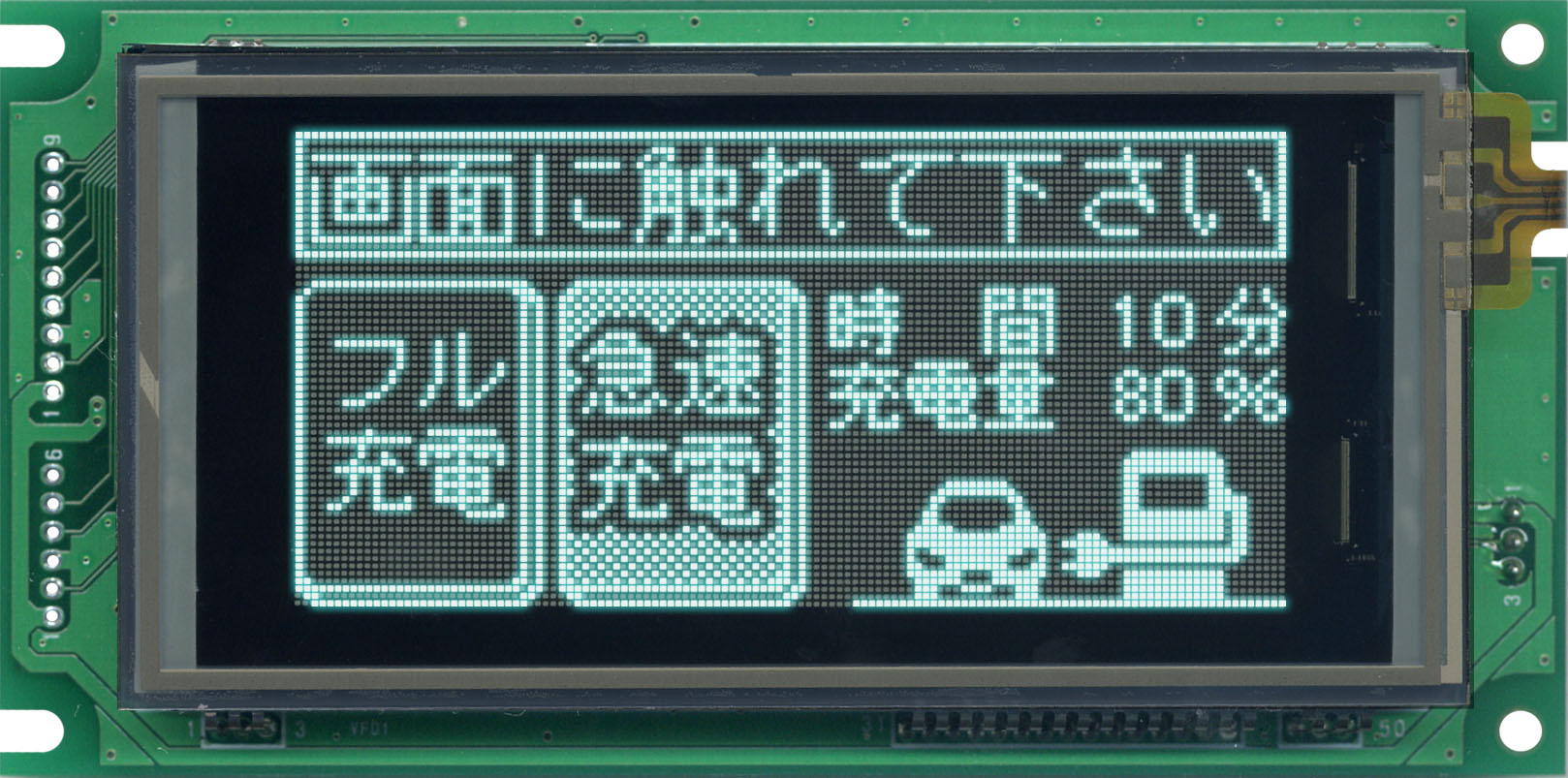

GR128x64F-B900
Large Size Modules for Gaming, Message Signs and POS Applications Noritake Itron has developed these large modules for gaming, message sign and POS applications. Many modules can store pre-define text and graphics in on board EPROM. Multi-drop addressing allows several modules to be connected to the same system bus. 16 and 32 dot high modules include variable sized fonts. The K61x series offer RS485 and clock serial options. Select modules are sold in enclosures with supporting software and accessories.Large Dot / 600 Series

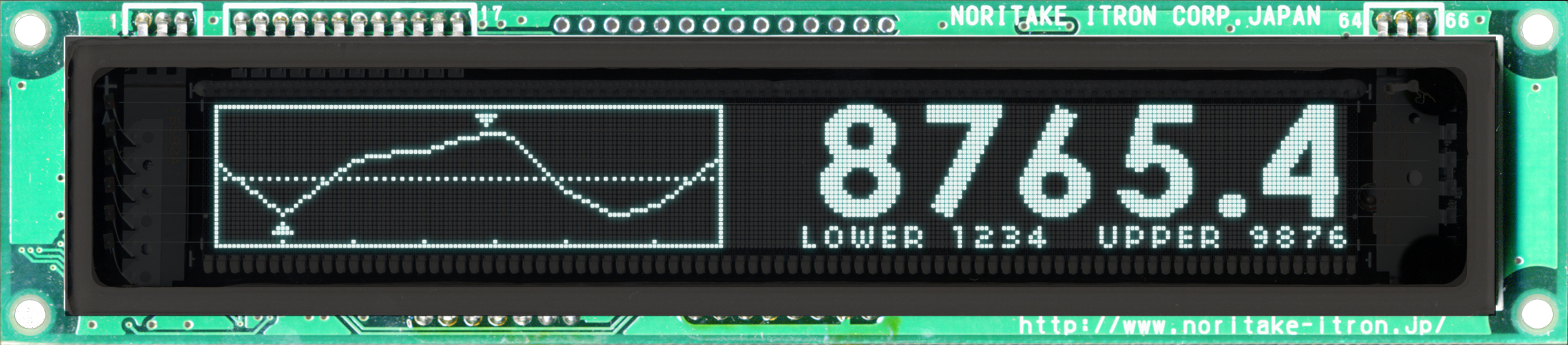

Highend Graphic / 3000 Series
Looking to replace a Futaba module ? Noritake can offer a number of graphic and character VFD modules similar to Futaba modules.
Where a module is not currently available, Itron (U.K.) Ltd may be able to develop a custom solution depending on required quantities and availability of VFD glass. Please contact us for more details.
* Some modules may not be 100% Futaba compatible so they should be evaluated in the customer application to ensure correct form, fit and function.Our highly compatible product part numbers are indicated below and partly compatible products are written in parentheses.・This list is for reference only and does not guarantee 100% compatibility even with the part numbers listed.
It is necessary to check the product specifications and evaluate it in your application before purchasing.
Product specifications can be downloaded from the product introduction page or technical support page.
・This list is subject to change without notice.
GU (graphic module)
Made by Futaba Corporation Made by Noritake Ise Electronics number of dots part number Display range (mm) Dot pitch (W x H mm) Substrate size (mm) part number 112x16 GP1183A01A 52.5 x 11.5 0.47 x 0.73 80.0 x 36.0 x 13.7 GU112X16G-7900B GP1209A01B 52.5 x 11.5 0.47 x 0.73 80.0 x 36.0 x 13.1 GU112X16G-7900B GP1209A01C 52.5 x 11.5 0.47 x 0.73 80.0 x 36.0 x 13.1 GU112X16G-7900B 127x64 GP9003A01B 77.8 x 39.1 0.61 x 0.61 134.5 x 61.5 x 20.7 (GU128X64F-7900BX) 128x32 GP1112A01A 57.5 x 14.3 0.45 x 0.45 88.0 x 44.0 x 20.7 (GU128X32D-7900B) / (GU128X32D-K610A8) GP1112A03D 57.5 x 14.3 0.45 x 0.45 88.0 x 44.0 x 20.7 (GU128X32D-7900B) / (GU128X32D-K610A8) GP1120A01A 83.1 x 20.7 0.65 x 0.65 130.0 x 38.5 x 22.0 (GU128X32D-7900B) / (GU128X32F-7806A) GP1120A01D 83.1 x 20.7 0.65 x 0.65 130.0 x 38.5 x 22.2 (GU128X32D-7900B) / (GU128X32F-7806A) 128x64 GP1118A01A 83.1 x 41.5 0.65 x 0.65 140.0 x 68.0 x 29.0 GU128X64-800B GP1118A01B 83.1 x 41.5 0.65 x 0.65 140.0 x 68.0 x 29.0 GU128X64-800B GP9002A01A 57.5 x 28.7 0.45 x 0.45 103.0 x 53.3 x 22.5 (GU128X64D-7000C) / (GU128x64D-K610A8) GP9002A01B 57.5 x 28.7 0.45 x 0.45 103.0 x 53.5 x 22.5 (GU128X64D-7000C) / (GU128x64D-K610A8) TGP1118AA 83.1 x 41.5 0.65 x 0.65 140.0 x 68.0 x 27.3 GU128X64-800B 140x16 GP1184A01A 69.9 x 11.5 0.5 x 0.73 116.0 x 37.0 x 13.7 GU140X16G-7900B GP1184A01B 69.9 x 11.5 0.5 x 0.73 116.0 x 37.0 x 13.7 GU140X16G-7900B NAGP1235AA 102.8 x 18.8 0.59 x 1.03 146.0 x 43.0 x 14.2 GU140X16J-7900B 140x32 NAGP1250AA 69.9 x 21.3 0.50 x 0.67 100.0 x 60.0 x 11.8 GU140X32F-7900B NAGP1250BA 69.9 x 21.3 0.50 x 0.67 120.0 x 40.0 x 11.8 (GU140X32F-7900B) NAGP1250BA 69.9 x 21.3 0.50 x 0.67 120.0 x 40.0 x 11.8 (GU140X32F-7064B) 160x32 GP1127A01A 71.9 x 14.3 0.45 x 0.45 130.2 x 43.0 x 26.2 (GU160X32D-7000C) / (GU160X32D-K610A8) GP1127A01B 71.9 x 14.3 0.45 x 0.45 130.2 x 43.0 x 26.2 (GU160X32D-7000C) / (GU160X32D-K610A8) 160x40 GP1135A01A 132.7 x 33.1 0.83 x 0.83 190.0 x 64.0 x 29.5 (GU160X80E-7900B) GP1135A01B 132.7 x 33.1 0.83 x 0.83 190.0 x 64.0 x 30.1 (GU160X80E-7900B) 160x64 GP1128A01A 71.9 x 28.7 0.45 x 0.45 125.0 x 56.3 x 29.6 (GU160X80E-7900B) GP1128A01B 71.9 x 28.7 0.45 x 0.45 125.0 x 56.3 x 29.6 (GU160X80E-7900B) 190x80 GP1193A02B 89.2 x 37.5 0.47 x 0.47 136.0 x 60.0 x 26.4 Please contact us 192x16 GP1238A01A 124.6 x 10.2 0.65 x 0.65 180.0 x 40.0 x 24.0 Please contact us 192x64 GP1129A01A 86.3 x 28.7 0.45 x 0.45 145.0 x 56.3 x 29.6 Please contact us GP1129A01B 86.3 x 28.7 0.45 x 0.45 145.0 x 56.3 x 29.6 Please contact us 224x16 GP1049B01A 559.7 x 51.7 2.50 x 3.25 625.0 x 79.5 x 43.0 Please contact us 240x36 GP1152A01A 146.2 x 28.6 0.61 x 0.80 205.2 x 62.0 x 30.0 (GU240X64D-K612A8) 256x16 GP1041A01A 309.5 x 26.1 1.21 x 1.65 385.0 x 59.5 x 32.0 Please contact us GP1046A03A 166.2 x 12.6 0.65 x 0.80 230.0 x 40.0 x 29.0 Please contact us GP1047A01A 460.5 x 35.7 1.80 x 2.25 525.0 x 59.5 x 40.0 Please contact us GP1072A01A 639.6 x 51.6 2.50 x 3.25 720.0 x 85.0 x 41.9 Please contact us GP1198A01B 166.3 x 12.7 0.65 x 0.80 230.0 x 40.0 x 29.0 Please contact us 256x32 GP1111A01A 166.3 x 20.7 0.65 x 0.65 220.0 x 50.0 x 27.0 GU256X32-800B 256x64 GP1063A01A 255.7 x 63.7 1.00 x 1.00 320.0 x 120.0 x 41.5 Please contact us GP1107A02A 115.1 x 28.7 0.45 x 0.45 180.0 x 55.0 x 26.0 (GU256X64D-7900BX) GP1150A01A 163.7 x 40.2 0.64 x 0.63 230.0 x 88.5 x 29.3 (GU256X64F-3900B) GP1157A01B 115.1 x 28.7 0.45 x 0.45 159.0 x 50.0 x 21.5 GU256X64D-7900BX GP1160A01A 163.7 x 38.3 0.64 x 0.62 220.0 x 60.0 x 23.6 (GU256X64F-3900B) GP1160A02A 163.7 x 38.3 0.64 x 0.62 220.0 x 60.0 x 23.6 (GU256X64F-3900B) GP1205A01B 115.1 x 28.7 0.45 x 0.45 159.0 x 50.0 x 23.5 GU256X64D-7900BX GP1212A02A 115.1 x 28.7 0.45 x 0.45 159.0 x 50.0 x 21.2 GU256X64D-3900B 264x24 GP1022A07A 316.5 x 35.7 - 385.0 x 62.0 x 35.1 Please contact us 320x16 GP1048A01A 559.7 x 35.7 1.75 x 2.25 625.0 x 59.5 x 40.0 Please contact us 336x24 GP1058A01A 557.5 x 51.3 - 625.0 x 80.0 x 43.0 Please contact us GP1058A03A 557.5 x 51.3 1.66 x 2.15 625.0 x 80.0 x 43.0 Please contact us *Flick left or right to slide the table.
