EMI Shields

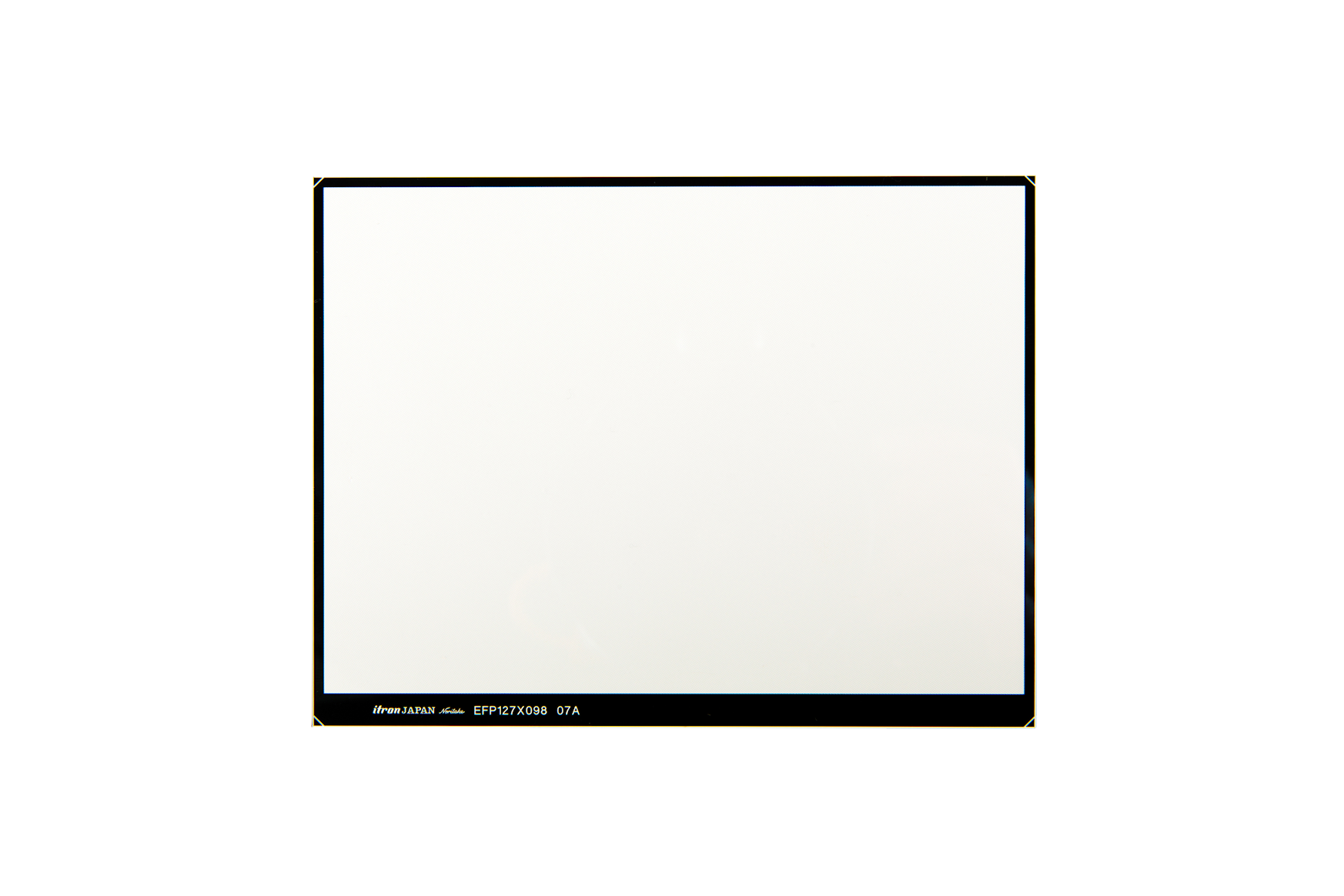

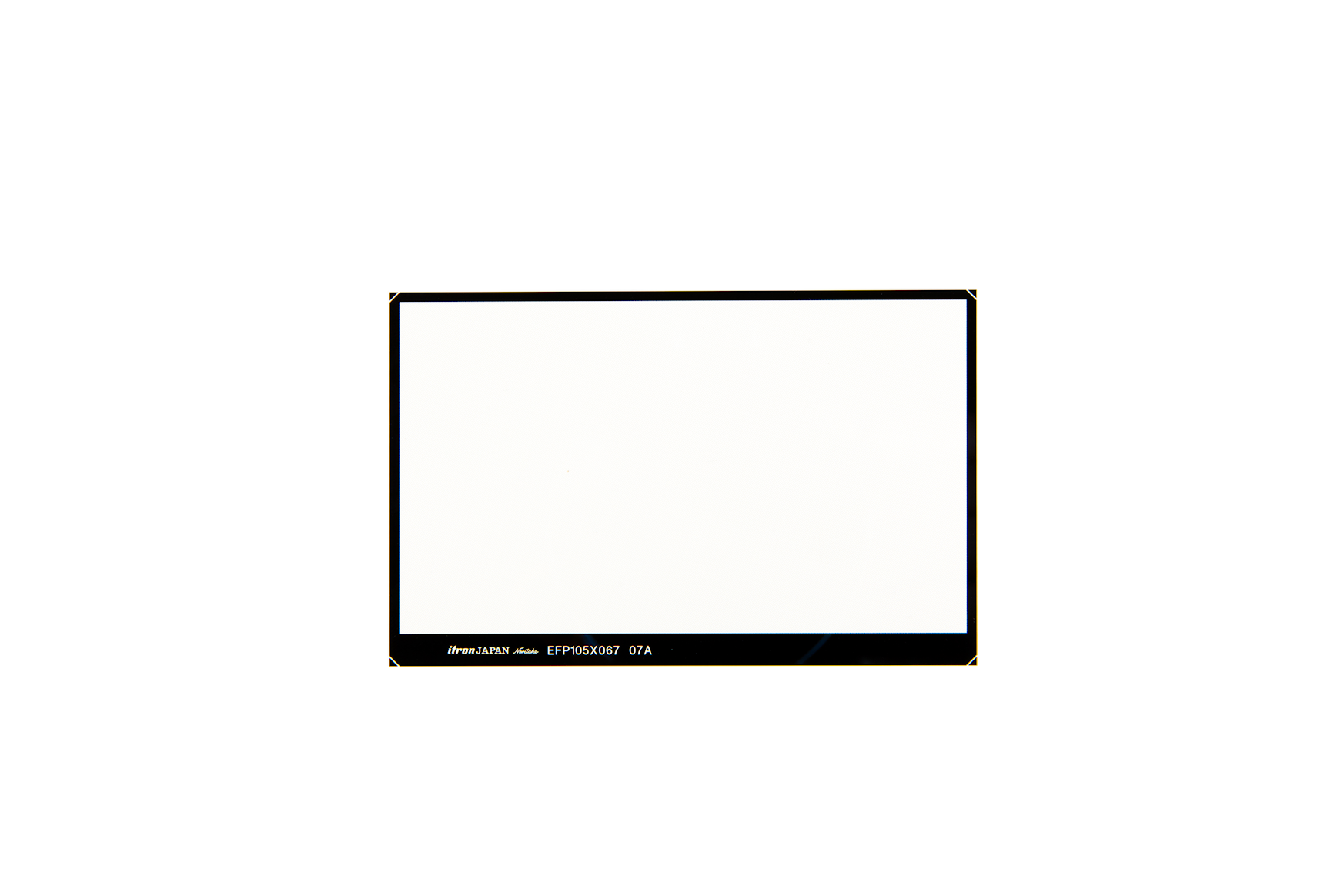

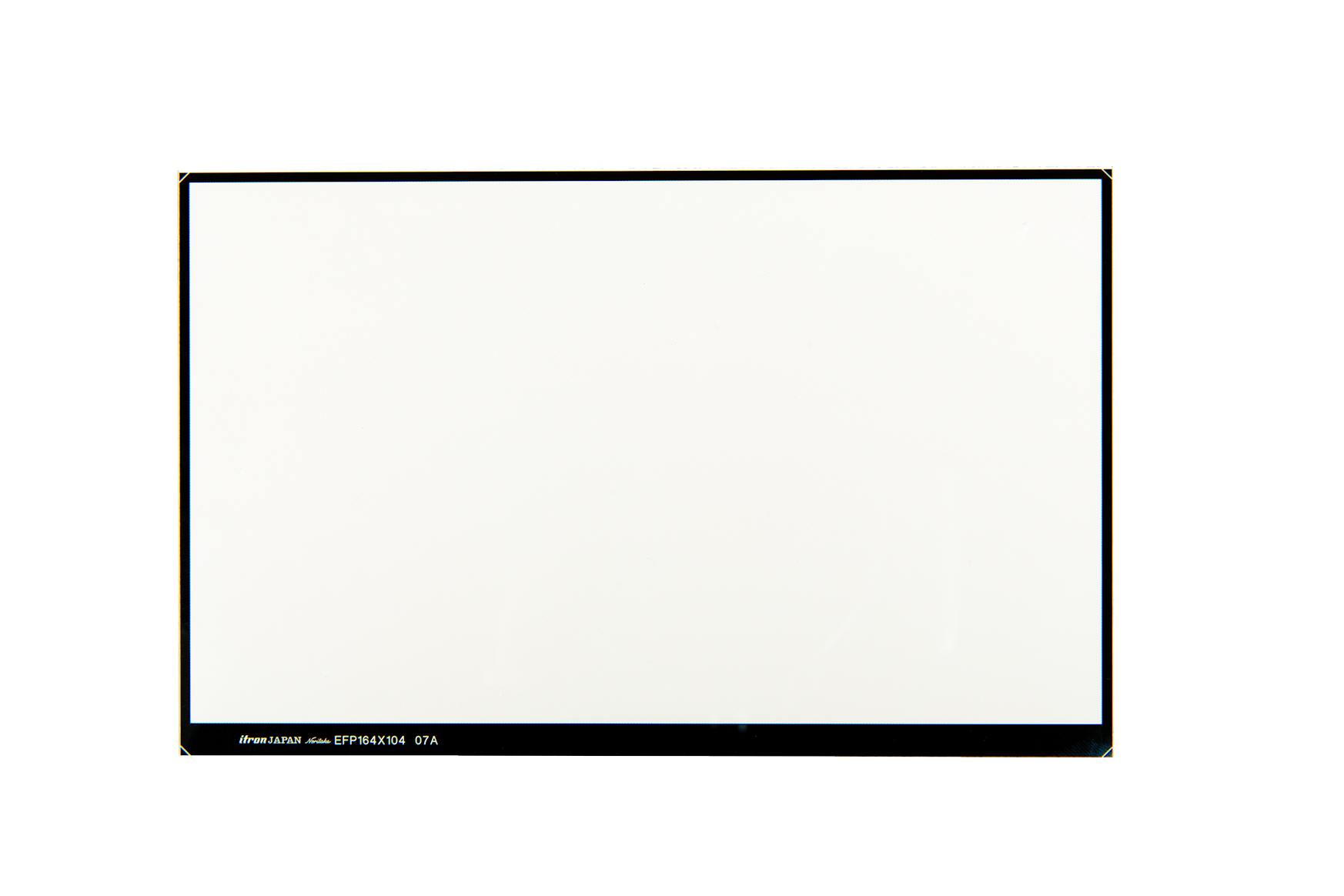

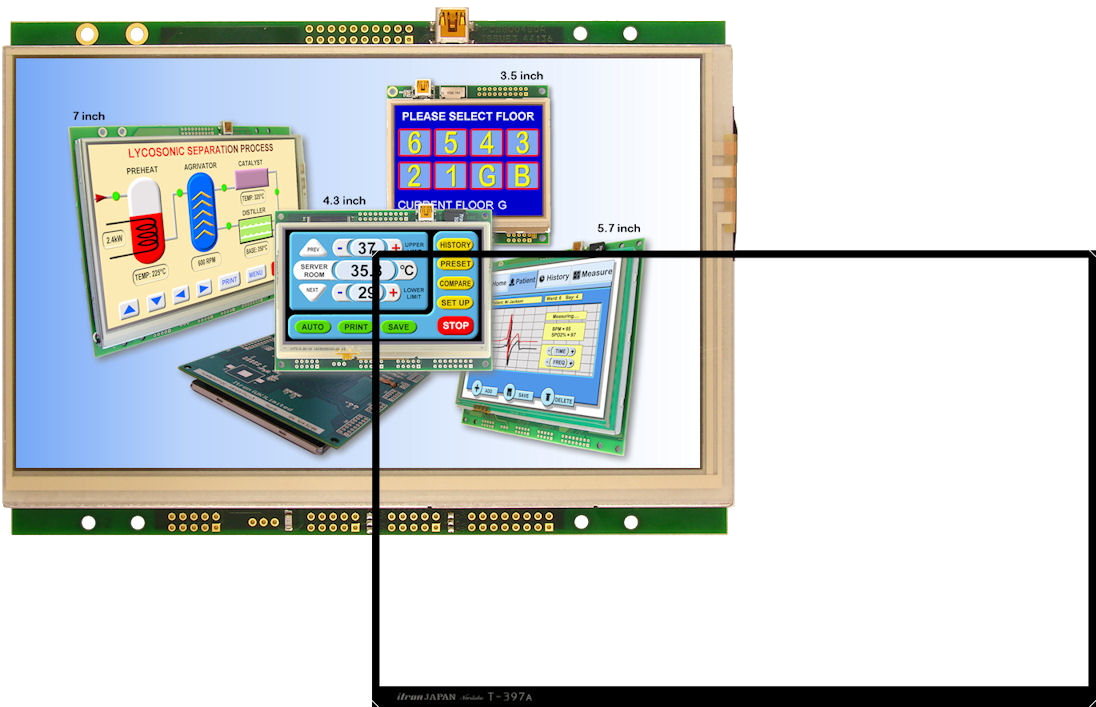

EMIHeaderEtched Aluminium micro-mesh
*Process : photo-lithographic deposition
*Ultra wide temperature range: -50C to +150C
*Mesh diameter: Typ. 300 um.
*Optical : Transmittance 84%
*EMI filtering: (Electric field) 40dB at 1 - 1000MHz
*Material : Aluminium on Soda Lime Glass + ITO coating
*Low Resistance 1 - 2 ohm center to frame
*Custom design area available for volumes > 500/year

This is the ideal solution for resolving EMI noise issues from display apertures and the perfect substrate for projective capacitive touch stability.



Itron UK’s original EMI filter
