Wide Temp Display Modules
Itron UK’s original electronic visual display expertise can be found within this wide temperature , industrial range of products featuring Vacuum Fluorescent Display technology or VFD’s . IUK’s Wide Temperatue Display Modules based industrial displays have been at the forefront of European industry for the last 40 years and they still find new opportunities in applications that cannot be solved any other way as reliably and cost effectively.
- Wide -40 to +85 Degrees Operating Temperature.
- High Bright visibility and wide viewing angle in all directions.
- Character and Graphic Format options.
- Design Longevity, supported for over 20 years in some cases.
- Modmaster Development Software available.
- Customisable displays and modules.
- Selectable 4/8 bit M68/i80 Interfaces
- Brightness Control Command
- ASIC Controller with only 2us busy time.
- Single 5V DC Supply
- ASCII + Extended + User Fonts
- CMOS Sync serial I/F available
- Graphics Upgrade for 5x7 LCD or VFD
- SPI/Async Serial as Slave or Host
- Graphic Upload and Draw Commands
- Unique Pass-Through Serial Port Host
- Selectable 4/8 bit M68/i80 Interfaces
- Place Cursor on any Pixel.
- 5x5, 5x7, 7x7, 7x15, 10x14 ASCII Fonts
5x7 Character LCD Emulation These popular 5x7 Dot Character LCD emulation modules have the additional feature that pin 3 can be linked to Busy or Hardware Reset. 4 level brightness control is available.
The high speed ASIC used to control these modules has a busy time of just 2us enabling dynamic visual effects using the extended character set and 8 user defined characters.Standard Modules

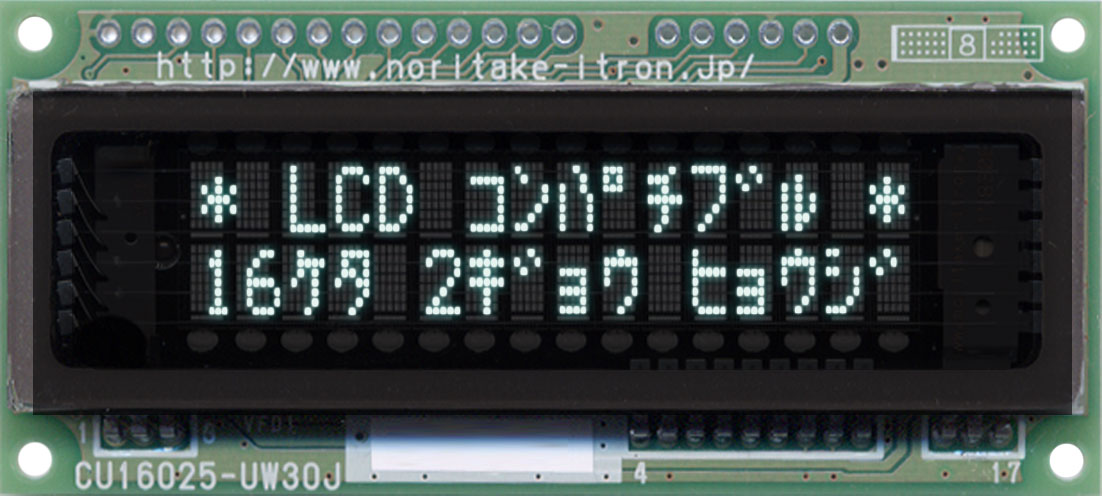

CU16025-UW30J
CU16025-UW6A
CU20045-UW4J

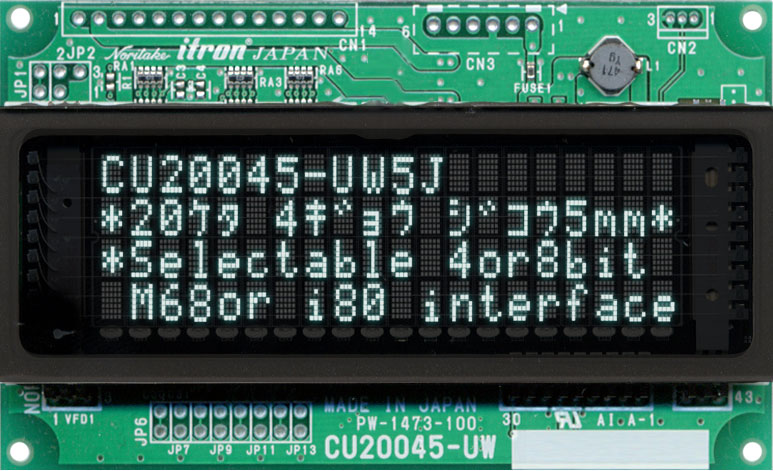

CU20045-UW5A
CU20045-UW7J

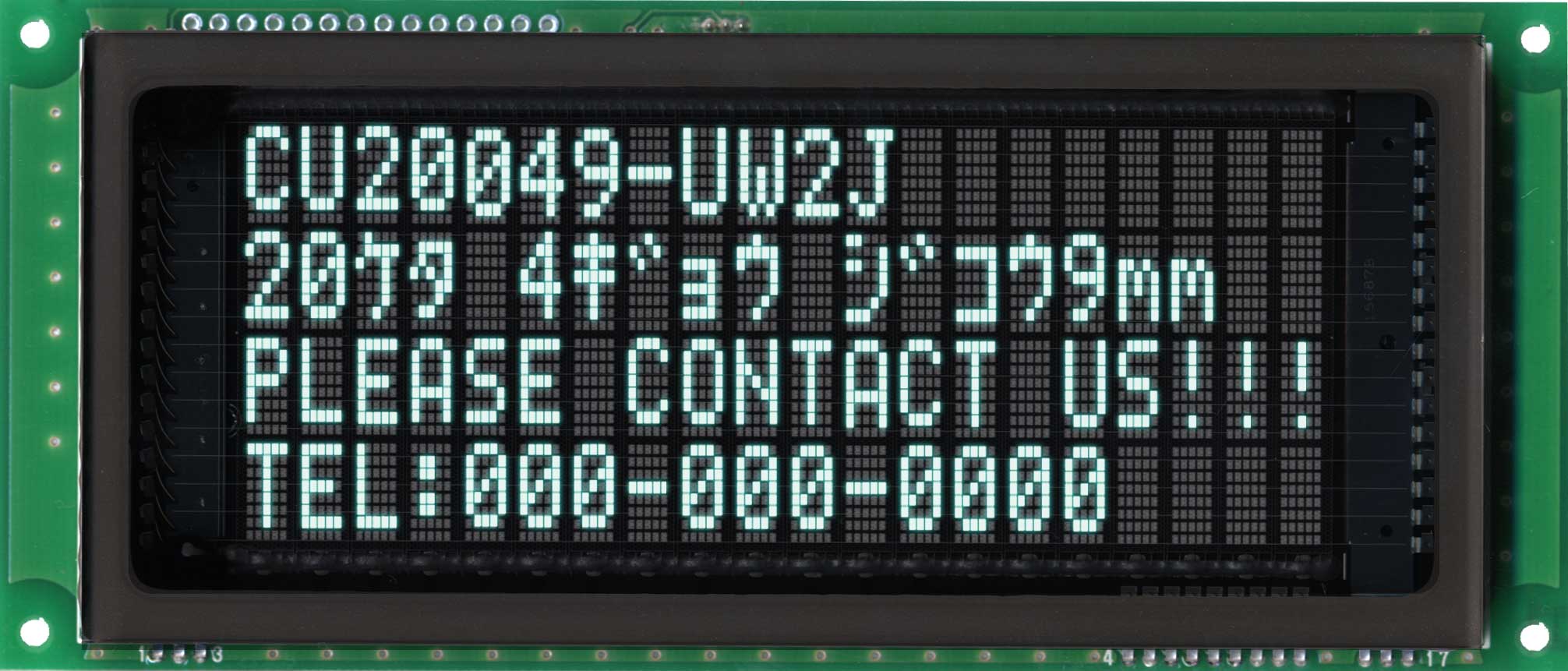

CU20049-UW2A

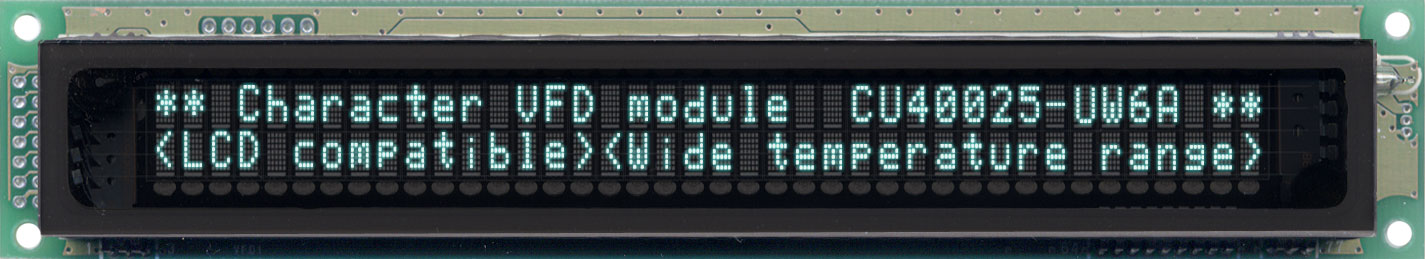

CU40025-UW6A
Brightness Boost Modules
CU16025-UX6J
CU16025-UX6A
CU20025-UX1J
Compact / High Brightness Modules
CU16024-UX3J
CU20024-UX3J
LCD Emulation + Graphics New Double density versions allow you to increase the number of rows in the same size modules. For example: 2x16 > 3x16 > 4x16. A 7x7 font is used to provide enhanced readability The 7806A have ASCII + European fonts and the 7806AC versions have ASCII + Cyrillic fonts
5x7 Character LCD Emulation
Graphic LCD module Emulation
GU128X64E-Uxx
GU128X64E-UWxx
Bold Font Character Module These character modules are easy to control with ASCII commands and characters using parallel or serial interfacing. The Y series modules feature character brightness control allowing highlighting and grayscale characters and symbols. The T series bold font modules have large pixels to provide a distinct image for easy reading at distance.T - Version

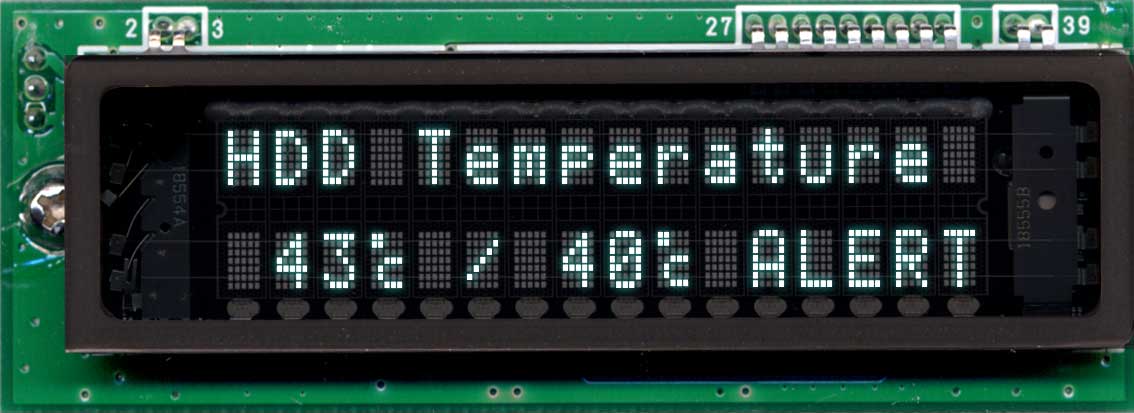

CU16025-TW200B
CU16029-TE200K

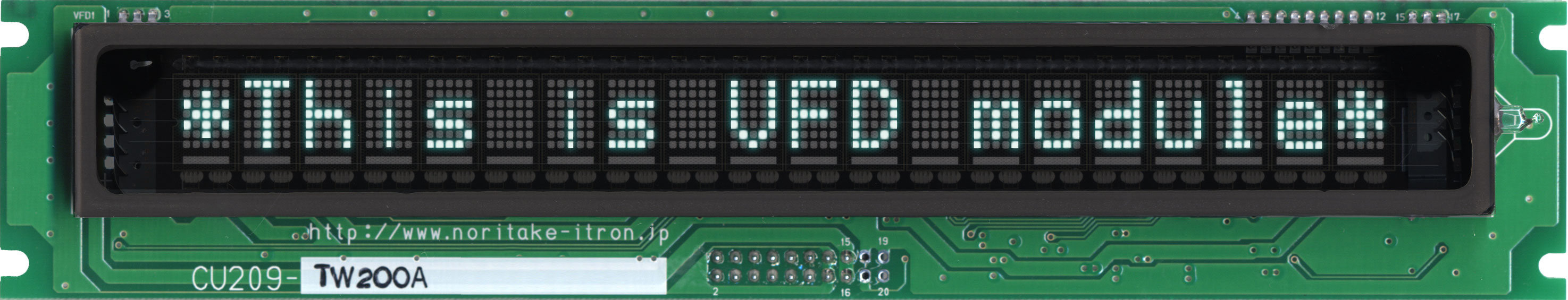

CU209-TW200B
CU20025-TW200B
CU20026SCPB-T30B
CU20029-TE200K
CU200211-TE200A
CU20045SCPB-T31B
CU40026-TW200J

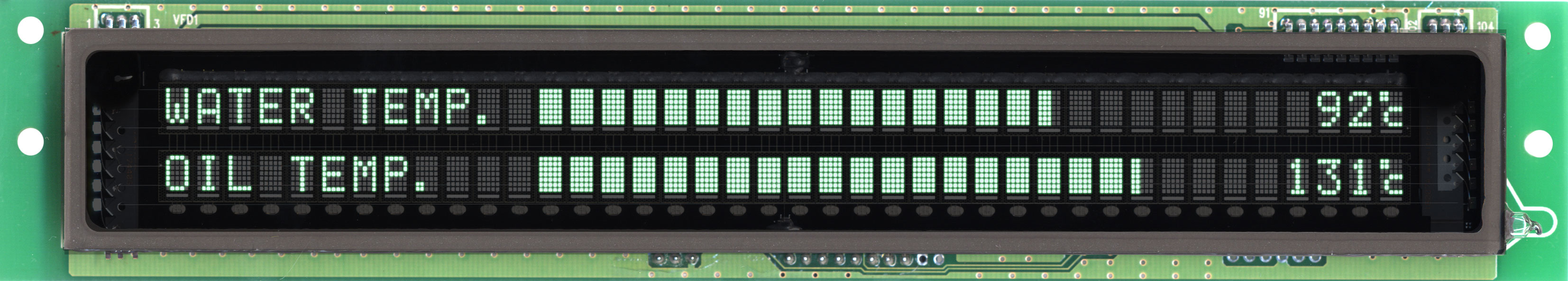

CU40026-TW226A
CU40066-TW200A
Y - Version
CU20027-YX1xx
CU20027-Y1xx
CU200211-Y1xx
CU22042-Y1xx
CU24043-Y1xx
CU24063-Y1xx
Compact Dot Graphic Compact Dot Graphic Modules have a pixel size of 0.3 to 0.5mm which means they are ideal for visibility at typically 1m. There 4 software series providing commands to suit the display attributes.Compact Graphic / 600 Series
Simple Command / 7000 Series
GU128x32D-7x5x
GU128x64F-7xxxBx
GU128x128D-7xxx
GU144x16D-7xxxB
GU160x32D-7xxx
GU256x64C-7xxx
Highend Graphic / 3000 Series
GU128x128D-3xxxB
GU256x64D-3x9xB
Capacitive Touch / GU-D Series
GU128x32D-D9xxS
GU140x32F-D9xxS
GU256x64C-D9xxM
GU256x128C-D9xxM
GU256x128D-D9xxM
Medium Dot Graphics Modules Medium Dot Graphic modules have a pixel size of 0.5 to 0.7mm which means they are visible at a distance of 2-3m. There 4 software series providing commands to suit the attributes of the display.Middle Dot Graphic / 600 Series
Simple Command / 7000 Series
Highend Graphic / 3000 Series
High Speed Graphic / 800 Series
Capacitive Touch / GU-D Series
GU140x32F-D9xxS
Resistive Touch / GU-D Series
GR128x64F-B900
Large Size Modules for Gaming, Message Signs and POS Applications Noritake Itron has developed these large modules for gaming, message sign and POS applications. Many modules can store pre-define text and graphics in on board EPROM. Multi-drop addressing allows several modules to be connected to the same system bus. 16 and 32 dot high modules include variable sized fonts. The K61x series offer RS485 and clock serial options. Select modules are sold in enclosures with supporting software and accessories.Large Dot / 600 Series
Highend Graphic / 3000 Series
