4.3" iSMART TFT Module
480X272 pixels
16 Million Colours
100 Page Display RAM
128M Byte Flash
4G+ Micro SDHC Slot
LED Backlight Control
5V Supply 3.3V Logic
ASCII + MultiFonts
Full RS232 Port
SPI - I2C Interfaces
Sync Serial Controller
USB 2.0 Interface
Analogue Touch Screen
Up to 8 x 8 Key Control
Up to 24 User Digital I/O
2 Analogue Inputs
2 PWM Outputs
Real Time Clock + Date
Run Animations
Auto Menu Control
Screen Rotation - 90, 180
Graphic User Interface
Integrated Debugger
Downloads
Flyer - 2 Pages
Full Specification

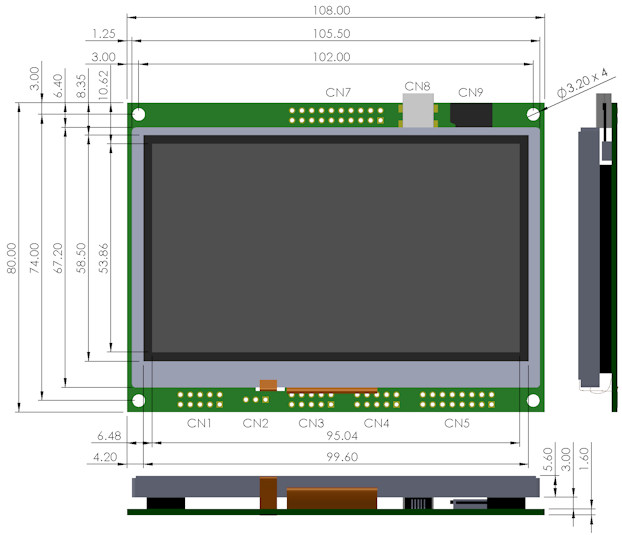

2D Mechanical
EMC Data
This product has been designed to simplify the implementation of TFT technology into your product. The high level text based object oriented command structure, entity library and 100 page screen memory allow most of the processing to be undertaken by the TFT module leaving the host CPU to concentrate on the core application processes. This allows proven firmware running on small 8 bit microcontrollers to be modified to drive this TFT module with a minimum of work and risk.
| Screen Type | 480x272 pixels - RGB Stripe - Pixel Pitch 0.2x0.2mm |
| Display Area | 95x53mm - 4.3" diagonal |
| RGB Colours | 16 million (24 bit) - Custom option: 65,535(16 bit) |
| Display Type | Transmissive |
| Contrast Ratio | 250:1 |
| View Angle (typ) | 60 degrees |
| LED Backlight Illumination | 300 nit |
| Response Time | 25ms @ 25C |
| Default Viewing Angle | 12 o'clock (6 o'clock-Invert the PCB and set 180 degrees orientation in software) |
| Operating Temperature | -20C to +70C |
| Storage Temperature | -30C to +80C |
| Humidity | 20% to 70% RH |
| Vibration | 10-55-10Hz, all amplitude 1mm, 30Min., X-Y-Z (Non operating) |
| Shock | 392m/s2 (40G) 9mS X-Y-Z, 3 times each direction (Non operating) |
| Parameter | Sym | Min | Typ | Max | Unit | Condition | Note | |
| Supply Voltage | VCC | 4.5 | 5 | 5.5 | VDC | VSS=0V | Absolute Max 6.0VDC | |
| Logic Supply Output | VDD | 3.2 | 3.3 | 3.4 | VDC | VCC=5V | Max50mA | |
| Logic Input Voltage | "H" | VIH | -0.5 | - | 3.4 (1) | VDC | VCC=5V | /RES, K0-K24, SCK, /SS, HB, SIN, SCL,SDA |
| "L" | VIL | VSS | - | VSS+0.5 | VDC | VSS=0V | ||
| Logic Output Voltage | "H" | VOH | 3.0 | - | 3.4 | VDC |
IOH=2mA VCC=5v |
K0-K24, SDA, SCL, SOUT, MB |
| "L" | VOL | 0 | - | 0.7 | VDC |
IOL=-2mA VCC=5V |
||
| "H" Level Logic Input Current | IIH | - | - | 1.0 | uADC | VCC=5.5V | /RES, K0-K24, SCK, /SS, SIN, SCL, SDA | |
| "L" Level Logic Input Current | IIL | - | - | 1.0 | uADC | VCC=5.5V | ||
| RS232 Input Voltage | "H" | VIH | 2 | - | 15 | VDC | VCC=5V | RXD, CTS, DSR |
| "L" | VIL | -15 | - | VSS+0.5 | VDC | VCC=5V | ||
| RS232 Output Voltage | "H" | VOH | 4 | 7 | - | VDC |
3kΩ to GND VCC=5V | TXD, DTR, RTS |
| "L" | VOL | - | -7 | -4 | VDC |
3kΩ to GND VCC=5V |
||
| Power Supply Current 1 | ICC1 | 340 | 360 | 390 | mADC | VCC=5V | All dots on | |
| Power Supply Current 2 | ICC2 | 120 | 140 | 170 | mADC | VCC=5V | LED Backlight Off | |
| Power Supply Current 3 | ICC3 | 25 | 30 | 40 | mADC | VCC=5V | Reset LOW | |
| Note (1) The voltage applied to logic signals must not exceed the rising VCC at power on as this could affect module initialisation | ||||||||

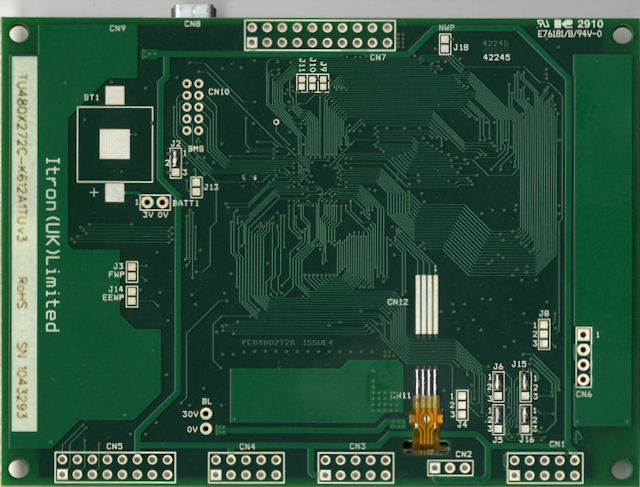

Connector
Pin Assignment
|
CON |
Function | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | Note |
| CN1 | RS232 Port | NC | DTR | TXD | CTS | RXD | RTS | DSR | NC | GND | 5V | Fits 9 way IDC D type pin 1-9 |
| RS232+RS485 | T+ | R- | TXD | CTS | RXD | RTS | R+ | T- | GND | 5V | Available on -K611xxx | |
| CN2 | 5V In / Piezo / GND | 5V | /PZ | 0V | - | - | - | - | - | - | - | Connect piezo negative |
| CN3 | I2C Serial Mode | 5V | SCL | - | SDA | 0V | - | - | /RES | 3v3 Logic (5v in option) | ||
| Asynch Serial Mode | 5V | - | SI | - | 0V | - | SO | /RES | MB | HB | 3v3 Logic (5v in option) | |
| Clock Ser / SPI Mode | 5V | - | RD | RCK | 0V | /RSS | TD | - | /TSS | TCK | SPI join 4 + 10 and 6+9 | |
| CN4 | ADC In, PWM Audio | AN1 | AN2 | 0V | 5V | PW1 | PW2 | ATX | ARX | ACK | AFS | AC97 Audio Pins 7-10 |
| User I/O | K16 | K17 | 0V | 5V | K18 | K19 | K20 | K21 | K22 | K23 | Additional I/O | |
|
Note: RTS/CTS or DTR/DSR can be selected, not both. When RS485 fitted in
model K611A1xx then only RTS/CTS are possible. |
||||||||||||
| CON | Function | 1/2 | 3/4 | 5/6 | 7/8 | 9/10 | 11/12 | 13/14 | 15/16 | 17/18 | 19/20 |
Note |
| CN5 | USB/ SD Card Extension | DA2 | CDA | CK | DA0 | 0V | 0V | DM | CNX | - | - |
SD
Card Pins 1-10 USB Pins 11-16 |
| DA3 | 3V3 | 0V | DA1 | CD | 5V | DP | 0V | - | - | |||
| CN6 | Debug / Async Serial | 3V3 | DRXD |
DBG 3V3 output max 50mA |
||||||||
| 0V | DTXD | |||||||||||
| CN7 | 8x8 Keyboard Matrix and user I/O Ports | 5V | 3V3 | K0 | K2 | K4 | K6 | K8 | K10 | K12 | K14 | 3V3 output max 50mA |
| 0V | 0V | K1 | K3 | K5 | K7 | K9 | K11 | K13 | K15 | |||
| CN8 | USB Connector |
5V power is provided from the PC. Standard Mini B connector can be omitted on user request. |
||||||||||
| CN9 | SD Card Slot |
Micro SD Card holder allows permanent installation for large storage or upload to internal flash. |
||||||||||
|
5V pins are common
un-fused input /outputs. 3V3 pins are outputs only with a total 50mA capacity. Do not
connect pins '-' or NC |
||||||||||||
