Slimline Displays
Features
° USB 2.0 compatible
° RS232 / RS485 options
° Uses built in Windows drivers
° IR keyboard interface mode
° Generic Text Printer emulation
° 5V Power derived from host / PC
° 8000 character memory
° ASCII + European fonts
° Program from a Text Editor / Software
° Networking as a Shared Printer
° Smooth Scroll - all directions
The ideal product for locating on office or reception desks, exhibition display panels, leaflet holders and products to get your message across to customers or visitors.
These compact, eye catching bright VFD displays can be plugged into the USB port of any PC for programming and a suitable 12V power adaptor for operation with RS232/485 interface.
more....
Production now

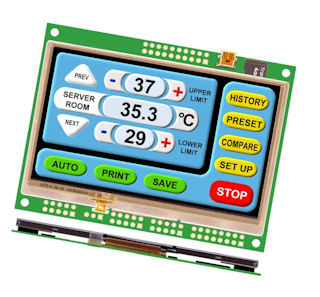

iSMART TFT
Modules
Features
16 Million Colours
100 Page Display RAM
128M Byte Flash
4G+ Micro SDHC Slot
LED Backlight Control
5V Supply 3.3V Logic
ASCII + MultiFonts
RS232 + 2 Async Ports
SPI - I2C Interfaces
Sync Serial Controller
USB 2.0 Interface
Analogue Touch Screen
Up to 12 x 12 Key Control
Up to 24 User Digital I/O
2 Analogue Inputs
2 PWM Outputs
Real Time Clock + Date
Run Time Counter
Production Oct
2010
Noritake Itron has developed an
object oriented language specifically
designed to control display modules
enabling rapid application development.
The modules have the ability to
store the complete application in internal
flash so the user's host system can be
a small 8 bit CPU sending
functional data updates.
Recommended sell price
4.3inch 1+ Eu89, 100+Eu79
excluding tax, freight and SDcard.
Terms and conditions apply.
This products range has been
launched in Europe and
is not currently available in
Asia or North America
more
Compact Economy Graphic with
Serial Interfaces
Features
°
Lowest Cost Solution
°
Async /SPI /I2C
Interfaces
°
RS232 + RS485 Options
°
Scalable Font Sets
°
Graphics Upload
°
Scroll and Flash Capability
° ASCII, European and Cyrillic Fonts
° Custom Font options
° Multi-sized fonts 5x5, 5x7, 10x14.
Sampling now, production Q2,2010
Noritake Itron's latest modules combine the power of it's flexible pixel
based range with it's economy graphic VFD displays used for LCD emulation.
These products offer a 30% cost saving compared to existing models.
The modules have a 12mm
profile with no components on the back allowing ease of handling and a
compact front panel assembly.
| part number | interfaces | spec |
| GU112x16G-K610A7 | Async/SPI/I2C |
 |
| GU140X16G-K610A7 | Async/SPI/I2C |
|
| GU140x32F-K610A7 | Async/SPI/I2C |
|
Compact 84x16
Graphic VFD
Display targets market in Oven Applications
Features
° High Temperature Operation 105C
° High Brightness 2000cd/m2
° Text and Graphic Commands
° 5x7 and 10x14 ASCII fonts
° Place Cursor on any Pixel
° Bi-directional SPI logic interface
° Single 5V supply
° 4 push button key option
° Semi Custom options
| part number | interfaces | spec |
| GU84X16D-K609A1 | SPI + keys |
|
| GU84X16D-K610A1 | SPI |
|
These modules use a high
brightness VFD
capable of 2000cd/m2 brightness to provide the 3mm high 5x7
characters a reading distance of more than two metres.
The module has been tested to provide T105 capability in oven and other
high temperature applications.
The SPI serial port provides a high speed clock serial interface with the
output byte showing the real time status of the key-switches.
Custom multi-language fonts can be programmed to suit your local
requirements.
Miniature 128x64 VFD
Display targets
Compact Applications
Features
° SPI / I2C / Async
° Text and Graphic Commands
° 5 Built In ASCII fonts
° Multi Language Character Sets
° Powerful Command Set
° Place Cursor on any Pixel
° Horizontal / Vertical Scroll
° Graphic Draw capability
° Selectable 3.3 or 5V logic interface
° Single 5V supply
Drive from a USB port using our
KBR38A-USB2 with the ModMaster
development software.
Sampling and production now.
| part number | interfaces | spec |
| GU128X64C-K610A7 | SPI/I2C/Async |
 |
The GU128X64C uses a high brightness VFD capable of 2.1mm high 5x7 characters which
can be read at more than one metre. Larger
built in ASCII fonts provide 4mm and 8mm high characters with the cursor capable of pixel resolution placement allowing applications to make full use of the display area.The graphic
draw and screen editing commands reduce host processing time via the bi-directional
asynchronous, SPI and I2C serial interfaces
with user selectable 3.3VDC or 5VDC logic.Eight user ports provide semi-custom onboard key-scan capability for resistive touch and
conventional contact switch push buttons on the
user front panel. The compact design measures 75x36mm with a thickness of only 10mm due to the low profile transformer-less
DC converter system used in Noritake Itron VFD modules. The wide environmental specification includes a temperature range of -40C to +85C and shock in excess of 14G XYZ.
Display Interface Controllers
via USB for VFD and LCD modules
Features
° USB 2.0 compatible
° Uses built in Windows drivers
° serial COM port mode
° IR keyboard interface mode
° new Generic Printer emulation mode
° parallel and serial output interfaces
i80, M68 bi-directional bus.
SPI, async, RS232, RS485
° Power and data from USB port
° ideal for development/testing
° external 5V supply option
| part number | interfaces | spec |
| KBR38A-USB3 (above) | Parallel + Serial |
|
| KBR38A-USB2 | Serial |
|
These
2.0 USB interface controllers support 8 bit parallel, SPI and asynchronous
serial interfaces at various baud rates in a small PCB footprint. The USB3 on
board potentiometer enables the bias voltage to be set for most 5x7
character LCDs and an IR receiver compatible with the low cost KBC56A
keyboard allows remote set up and control. They can be
configured on the fly as one of 3 USB devices, a bi-directional COM port,
a combined PC keyboard and mouse and a generic printer for use with
existing software print routines. These products support our Modmaster
development system which provides rapid display demonstration capability
for management presentation and firmware development.
Tests show that many displays requiring up to 450mA at 5VDC can be
directly powered from the USB supply.
with selectable 3.3V/5V logic
Features
° pixel flexible cursor placement
° parallel and serial interfaces
° SPI, async, RS232, RS485 options
° selectable 3.3V and 5V logic
° 4 font sizes + custom options
° ASCII, European, Russian
| part number | format | spec |
| GU160x32D-K610A8 | 160x32 |
|
| GU160X64D-K610A8 | 160x64 |
|
| GU160X64D-K612A8 | 160x64 |
|
| GU240X64D-K612A8 | 240x64 |
|
The
three formats extend the mid range product line up for instruments and
detailed graphic application.
The modules include a jumper option to switch
the interfaces to 3.3V or
5V logic operation. SPI, I2C, parallel and asynchronous communication is
provided.
These 600 series products include an extensive command set plus ASCII,
European and Cyrillic
fonts with character formats 5x5, 5x7, 7x15 and
10x14.
The 240X64 module has provision for a USB interface. Custom software
options are readily available and affordable.
Double the Character Rows
in the same LCD module size
Features
° Compatible
footprint / interface
° 6 simultaneous font sizes
° LCD compatible commands
° extended Graphic commands
° parallel and serial interfaces
° i80, M68 bi-directional bus.
° SPI, async, RS232
° European, Katakana, Russian
° Custom commands and fonts
| part number | rows/ch height |
euro spec |
cyrillic spec |
|
| existing | new | |||
| GU128X32D-7806A | 2x16/5 | 4x16 |
|
|
| GU160X32D-7806A | 2x20/5 | 4x20 |
|
|
| GU160X64D-7806A | 4x20/5 | 8x20 |
|
|
| GU280X32D-7806A | 2x40/5 | 4x40 |
|
|
| GU128X32F-7806A | 2x16/9 | 4x16 |
|
|
| GU160X32F-7806A | 2x20/9 | 4x20 |
|
|
The high brightness of VFD allows six new
designs of popular LCD formats to provide users with more text lines in
the existing size module. The modules are backward compatible with 2x16,
2x20, 4x20 and 2x40 formats and expand to 4x16, 4x20, 8x20 and 4x40 with a
single software command. A new 7x7 dot font maintains readability through
increased character width.
Additional graphic commands allow mono-spaced or proportional multi sized
fonts 5x5, 5x7, 7x7, 7x15, 10x14 and 20x28 with graphic image upload. Draw
commands allow outlines and boxes to be created on screen. Russian
(Cyrillic) and European font options are available. 9mm character
equivalents are to be released in Q3/08 with 128x32 and 160x32 displays
supporting the larger 2x16 and 2x20 sizes.
